Rear Inner Right Parking Aid Sensor Connector - C4012

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

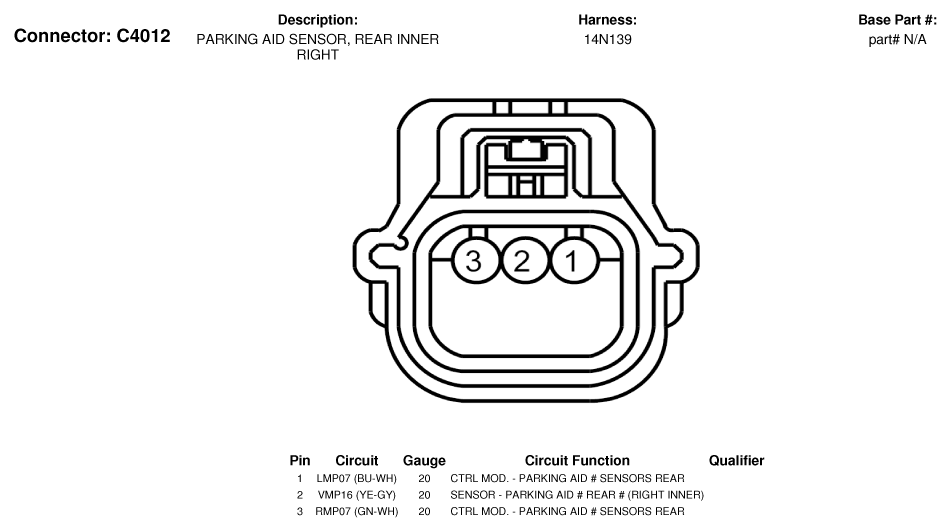

Fig 1: Rear Inner Right Parking Aid Sensor Connector End View (C4012)
G07336399Courtesy of FORD MOTOR CO.
