Passenger Seat Rear Height Motor Connector - C3075

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

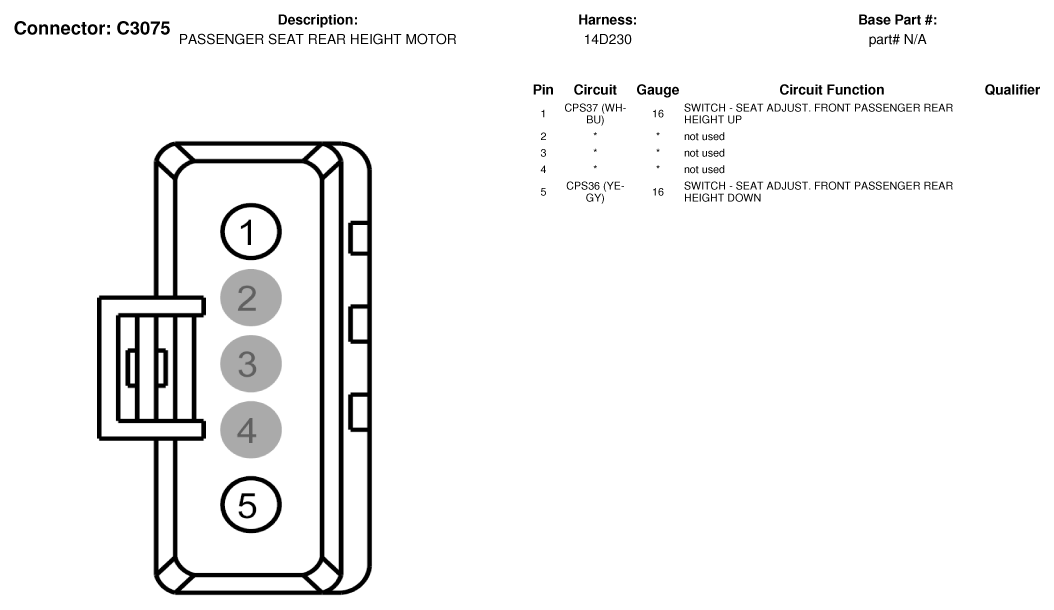

Fig 1: Passenger Seat Rear Height Motor Connector End View (C3075)
G07336302Courtesy of FORD MOTOR CO.
