Passenger Safety Belt Tension Sensor Connector - C3238

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

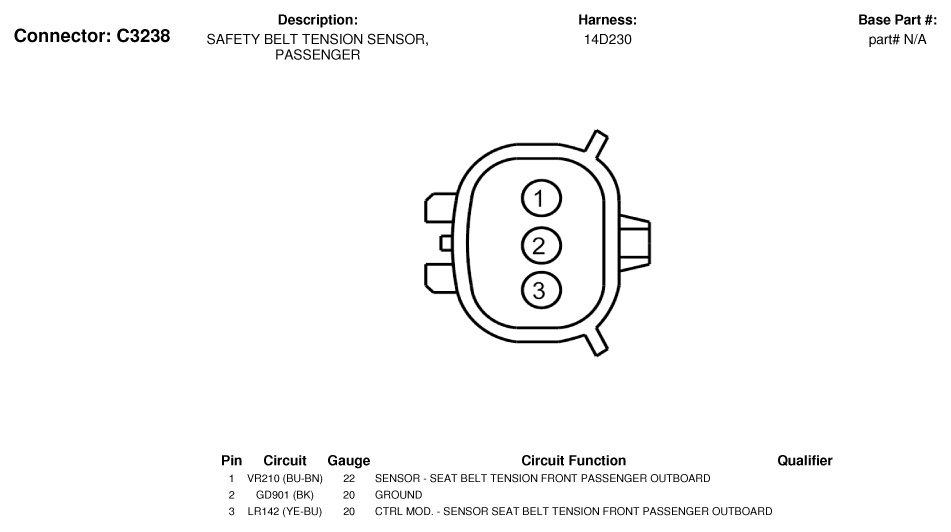

Fig 1: Passenger Safety Belt Tension Sensor Connector End View (C3238)
G07336334Courtesy of FORD MOTOR CO.
