Left Rear Lumbar Adjust Switch Connector - C3356

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

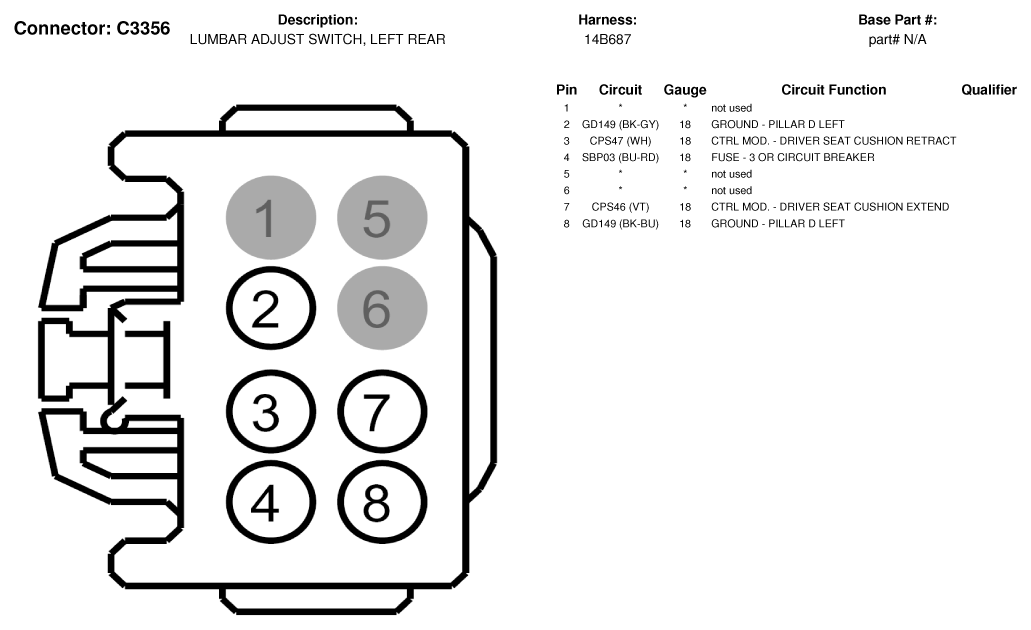

Fig 1: Left Rear Lumbar Adjust Switch Connector End View (C3356)
G07336361Courtesy of FORD MOTOR CO.
