Left Rear Lamp Assembly Connector - C498

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

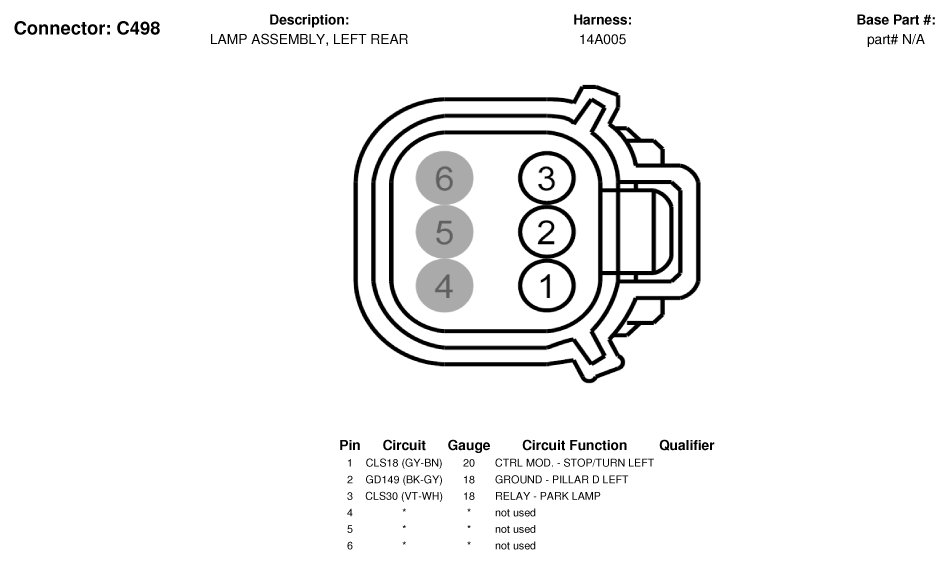

Fig 1: Left Rear Lamp Assembly Connector End View (C498)
G07336126Courtesy of FORD MOTOR CO.
