Left License Plate Lamp Connector - C452

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

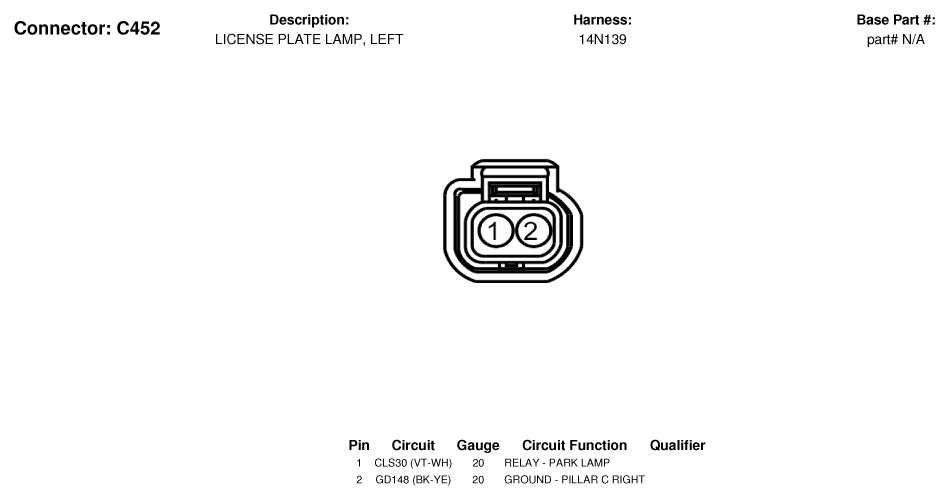

Fig 1: Left License Plate Lamp Connector End View (C452)
G07336119Courtesy of FORD MOTOR CO.
