Horn Connector - C131

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

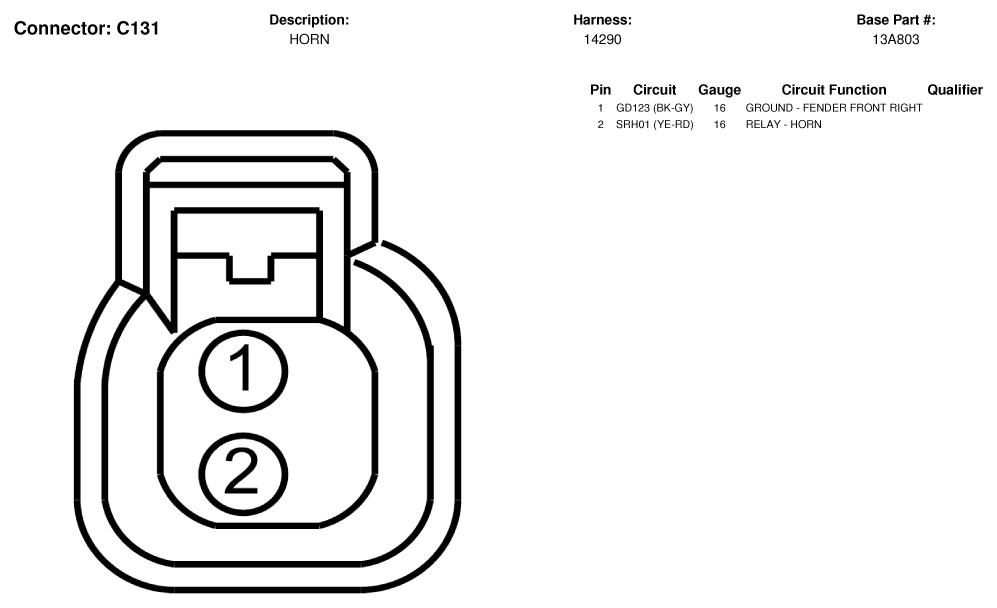

Fig 1: Horn Connector End View (C131)
G07335983Courtesy of FORD MOTOR CO.
