Glove Box Lamp Connector - C254

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

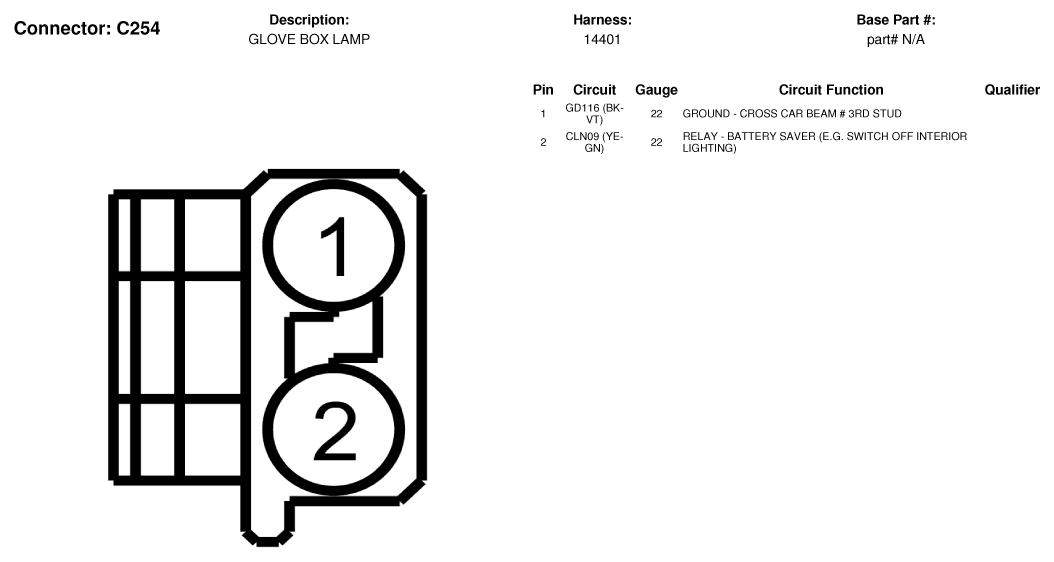

Fig 1: Glove Box Lamp Connector End View (C254)
G07336053Courtesy of FORD MOTOR CO.
