Section 2600 (OEM Connector End Views)
>>
Connector Views
>>
A/C Pressure Transducer Connector - C1260
A/C Pressure Transducer Connector - C1260
WARNING:
This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

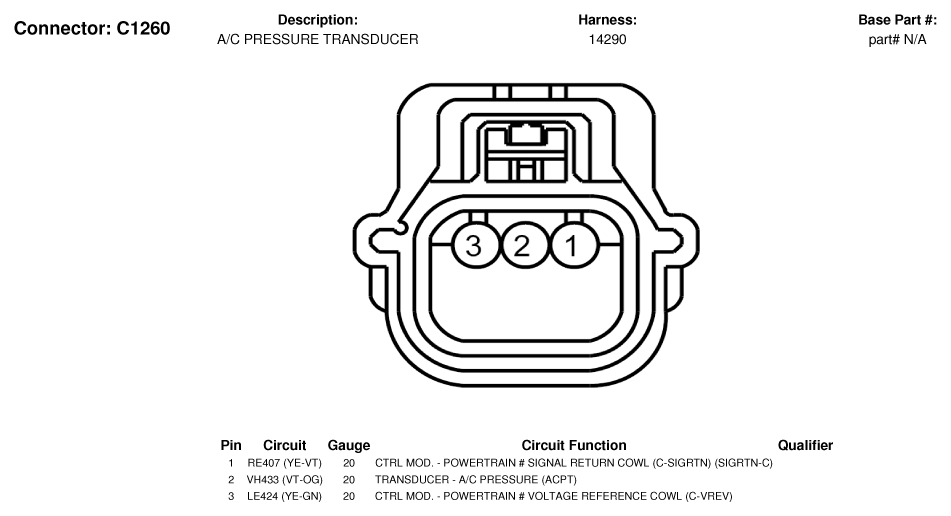

Fig 1: A/C Pressure Transducer Connector End View (C1260)
Courtesy of FORD MOTOR CO.
