Shock Absorber - Super Duty F450, F550, Dana Axle: Removal
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. Install new parts with the same part number or an equivalent part if installation is necessary. Do not use an installation part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
CAUTION:
The low pressure gas shock absorbers are charged with nitrogen gas. Do not attempt to open, puncture or apply heat to shock absorbers.
- Raise and support the vehicle.
- Using a suitable jack, support the rear axle.

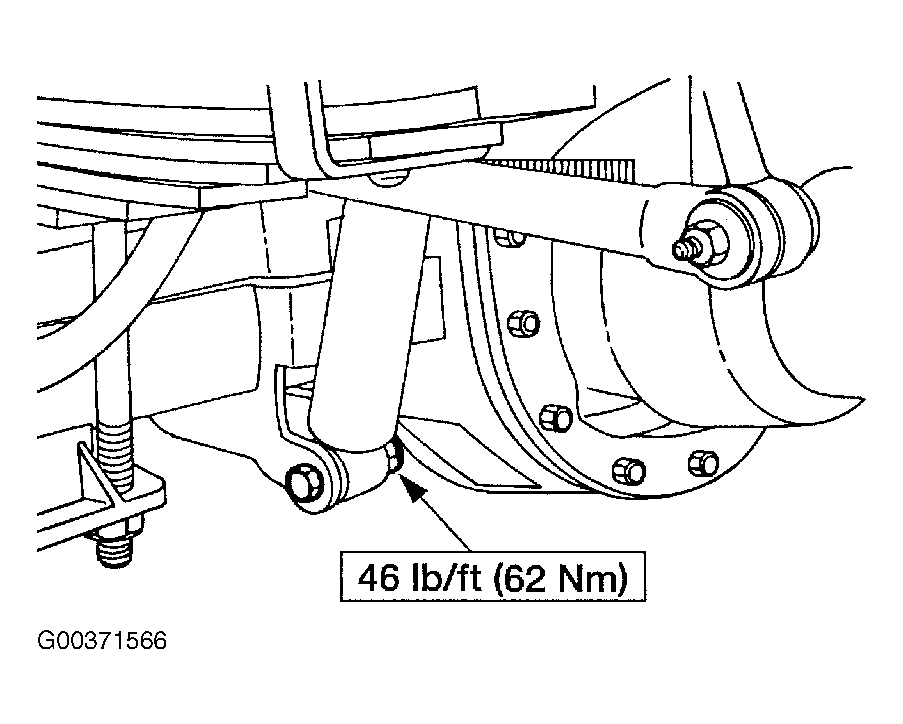

- Remove the shock absorber lower retaining nut and bolt.
- Remove the nut from the upper shock absorber mounting bracket and remove the shock.
