Description And Operation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

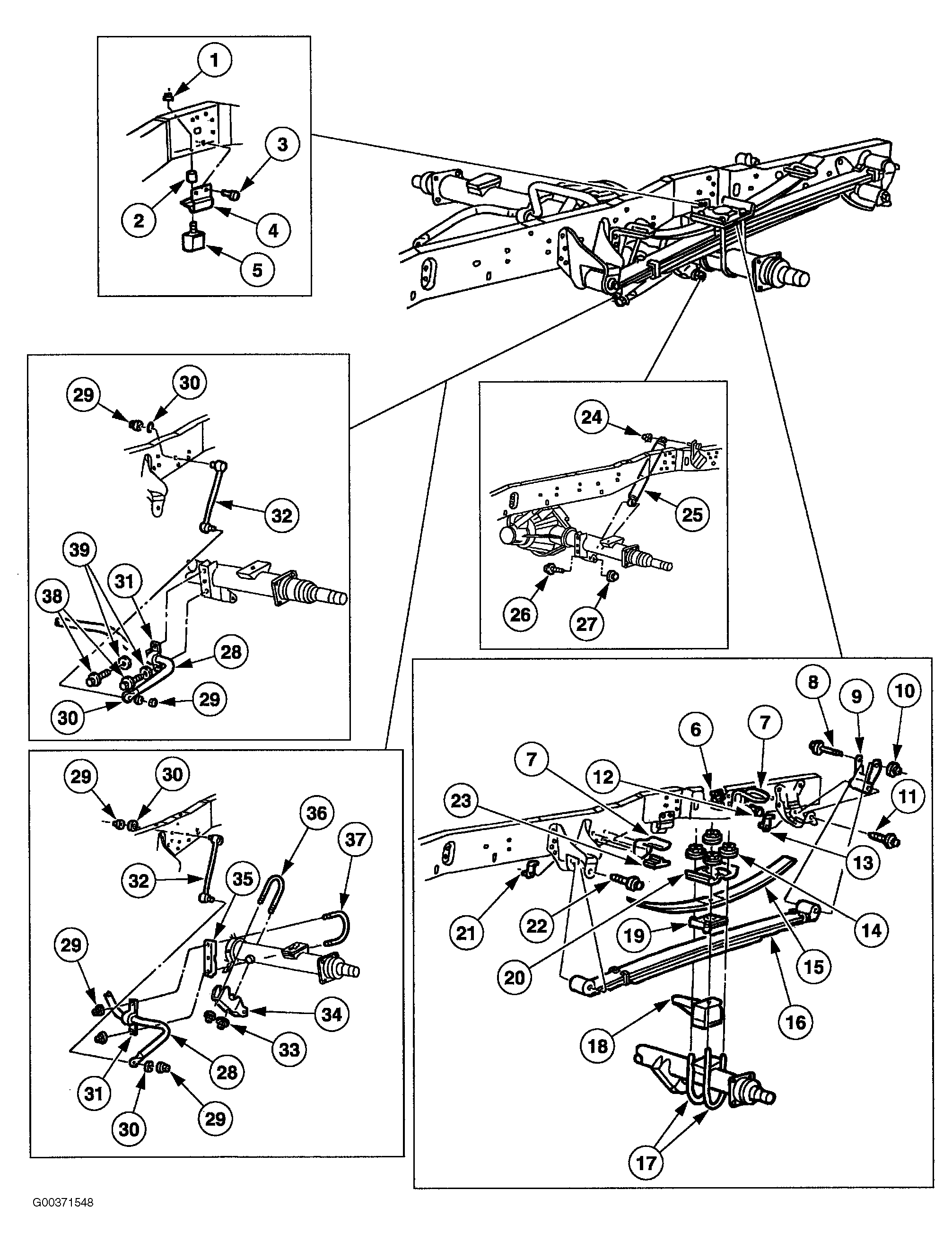

Fig 1: Super Duty F250 & F350 Wide Frame (1 Of 2)

G00371548

Courtesy of FORD MOTOR CO.

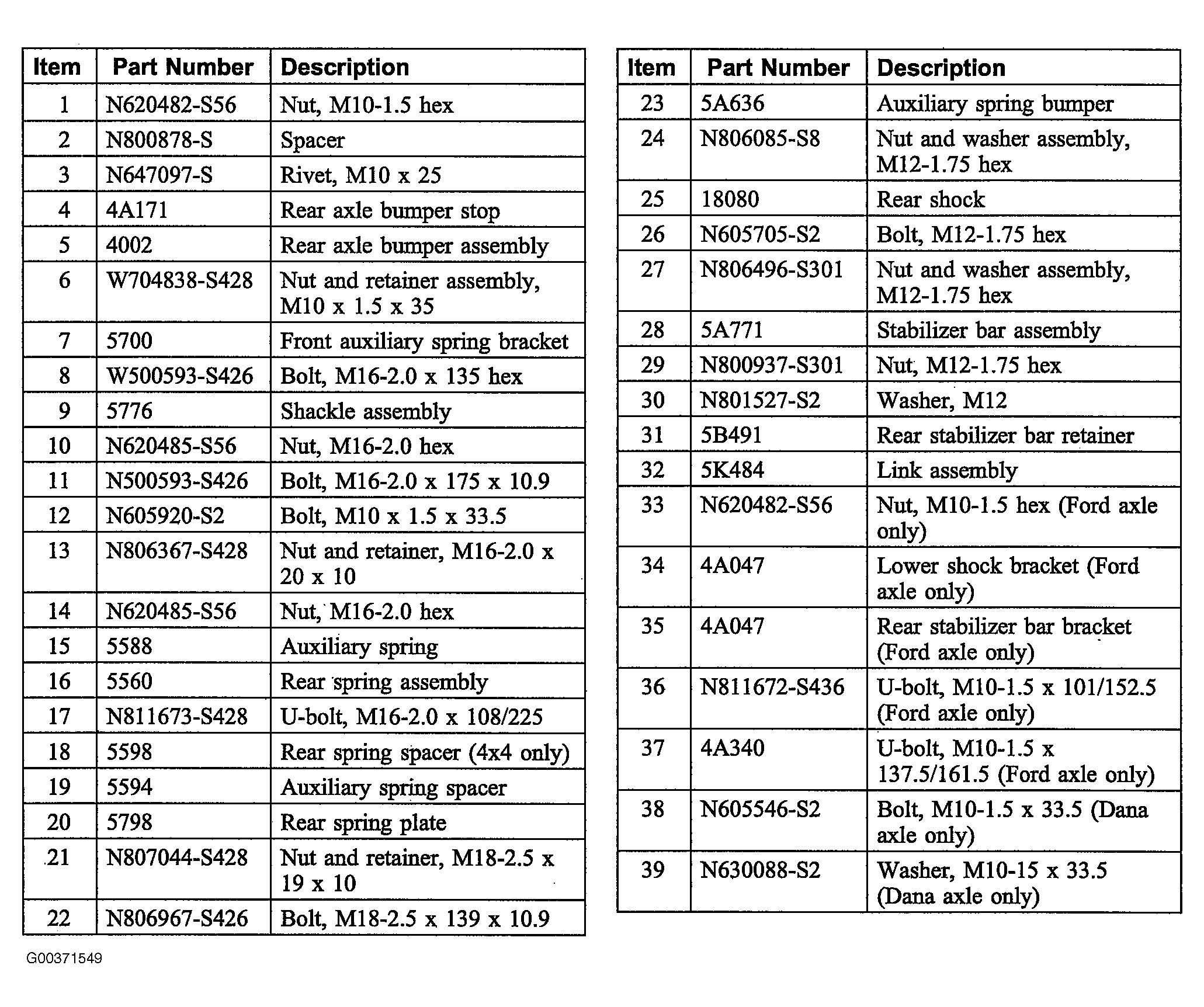

Fig 2: Super Duty F250 & F350 Wide Frame (2 Of 2)

G00371549

Courtesy of FORD MOTOR CO.

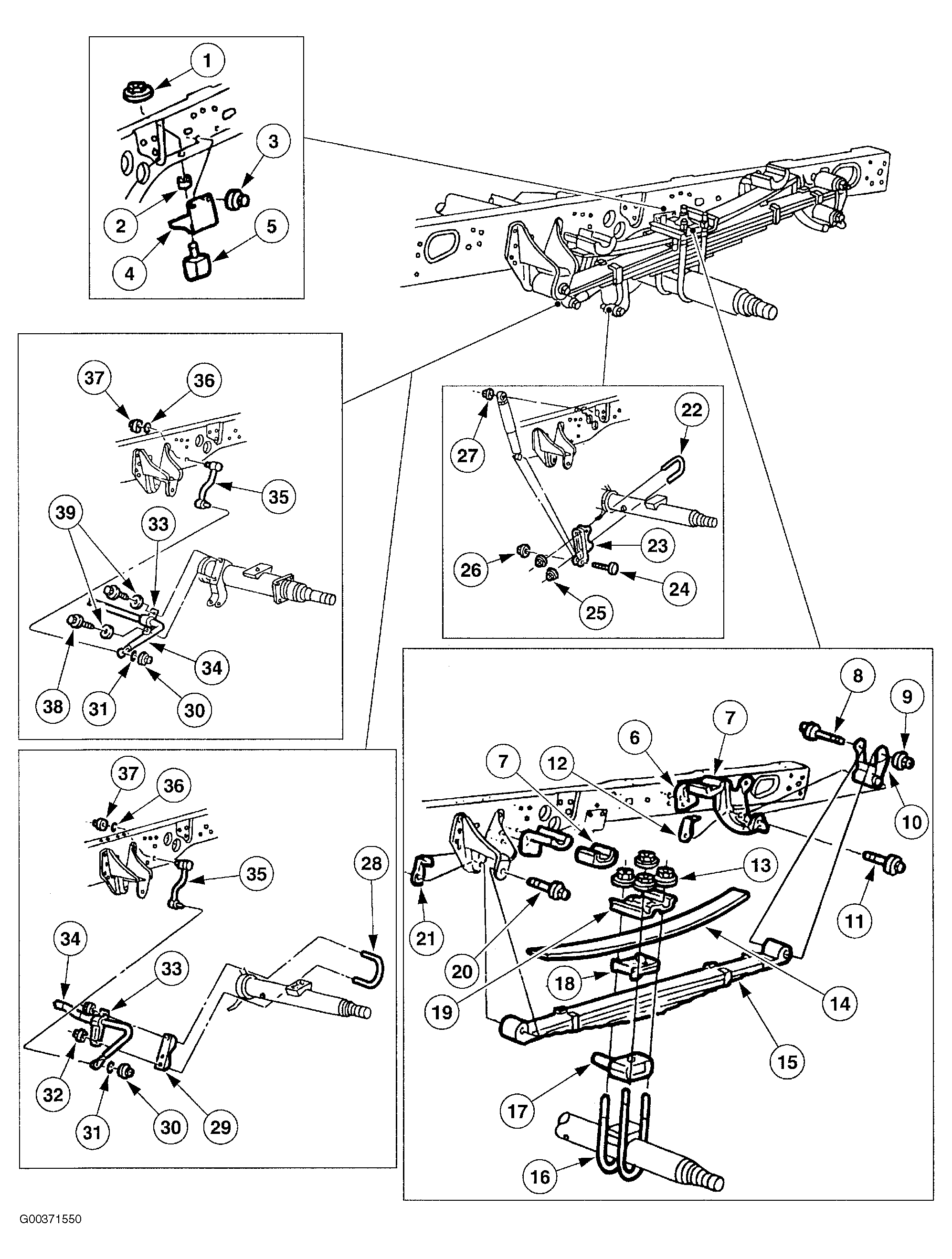

Fig 3: Super Duty F350 Narrow Frame (1 of 2)

G00371550

Courtesy of FORD MOTOR CO.

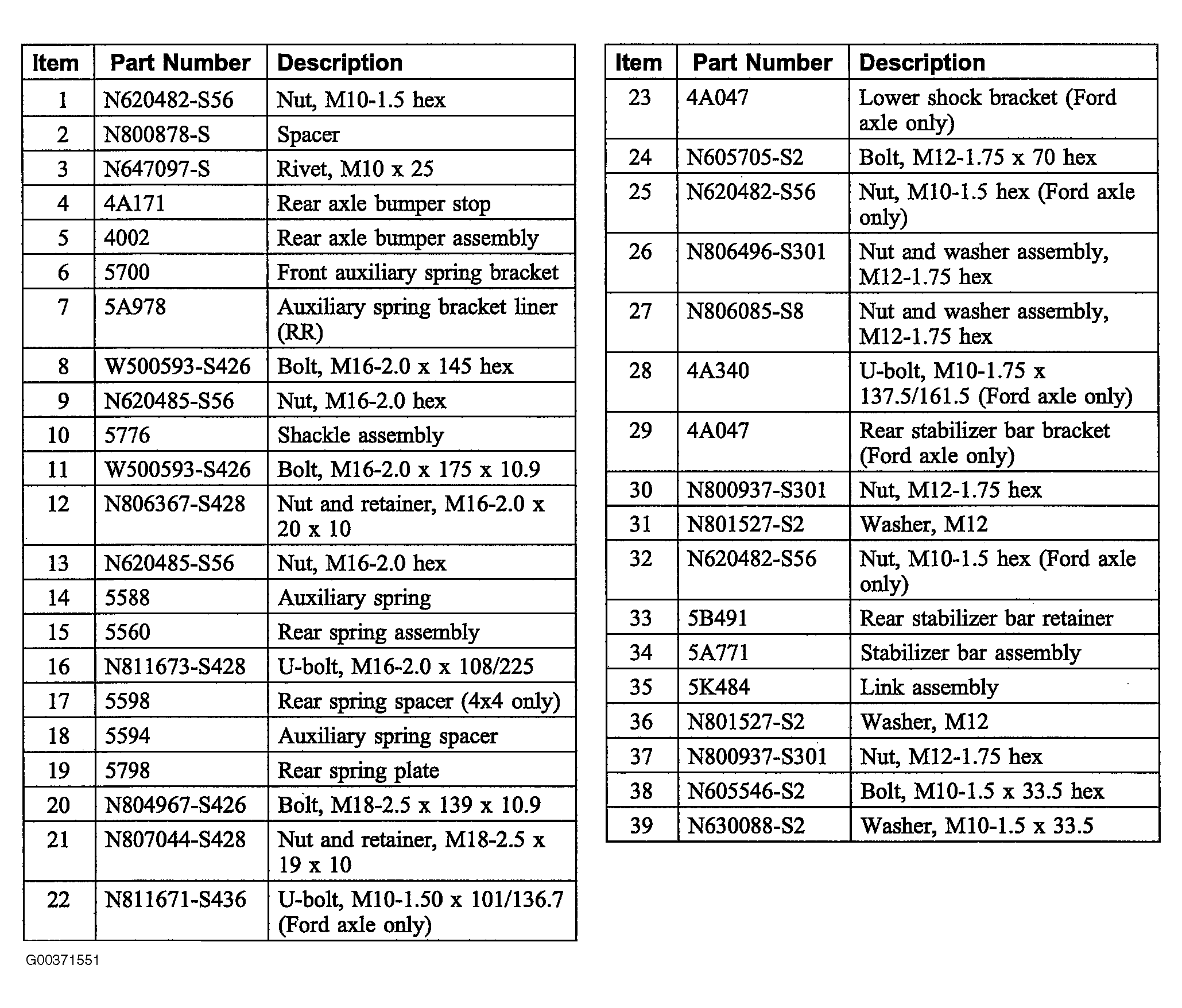

Fig 4: Super Duty F350 Narrow Frame (2 Of 2)

G00371551

Courtesy of FORD MOTOR CO.

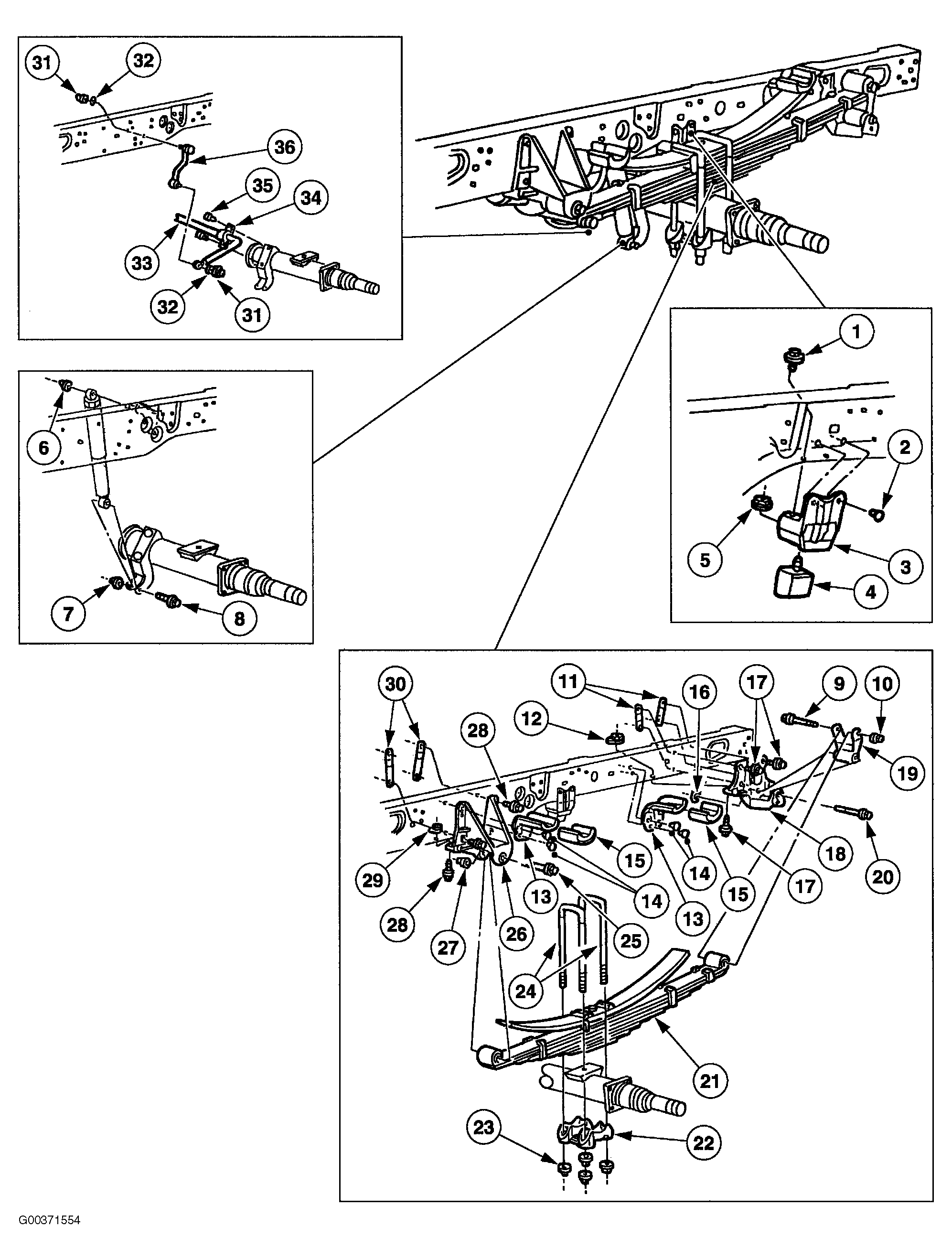

Fig 5: Super Duty F450 (1 Of 2)

G00371554

Courtesy of FORD MOTOR CO.

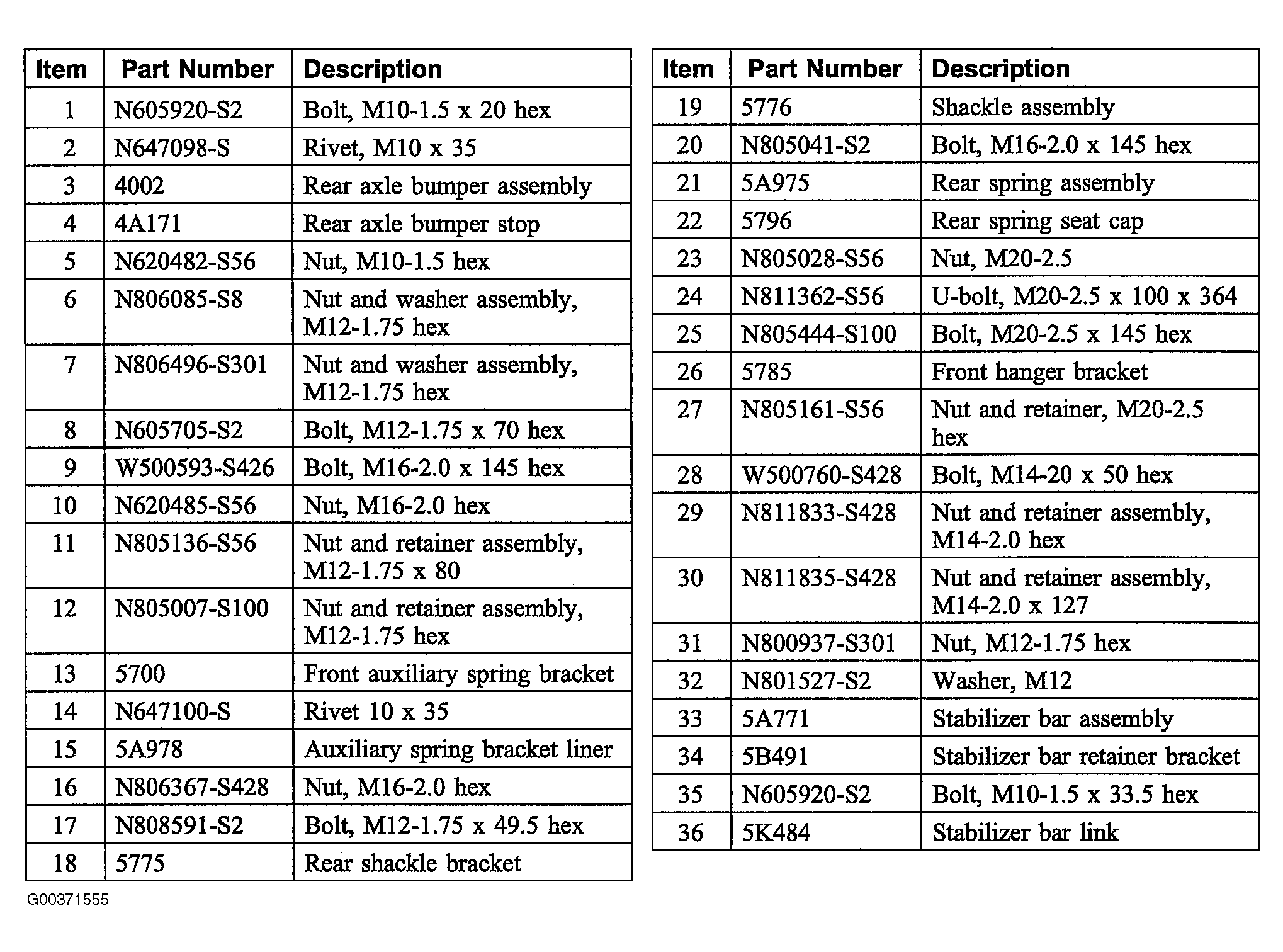

Fig 6: Super Duty F450 (2 Of 2)

G00371555

Courtesy of FORD MOTOR CO.

Fig 7: Super Duty F550 (1 Of 2)

G00371552

Courtesy of FORD MOTOR CO.

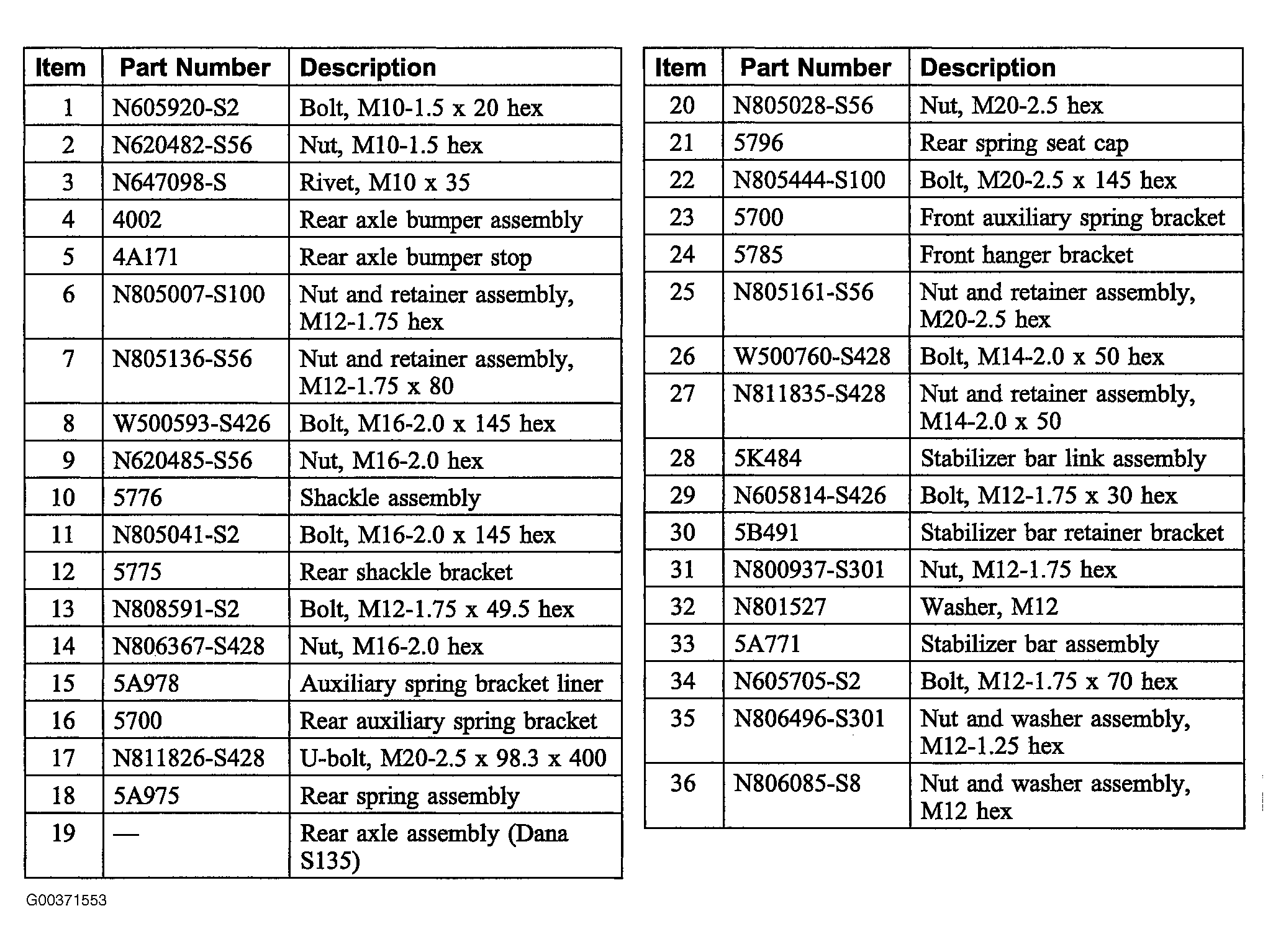

Fig 8: Super Duty F550 (2 Of 2)

G00371553

Courtesy of FORD MOTOR CO.

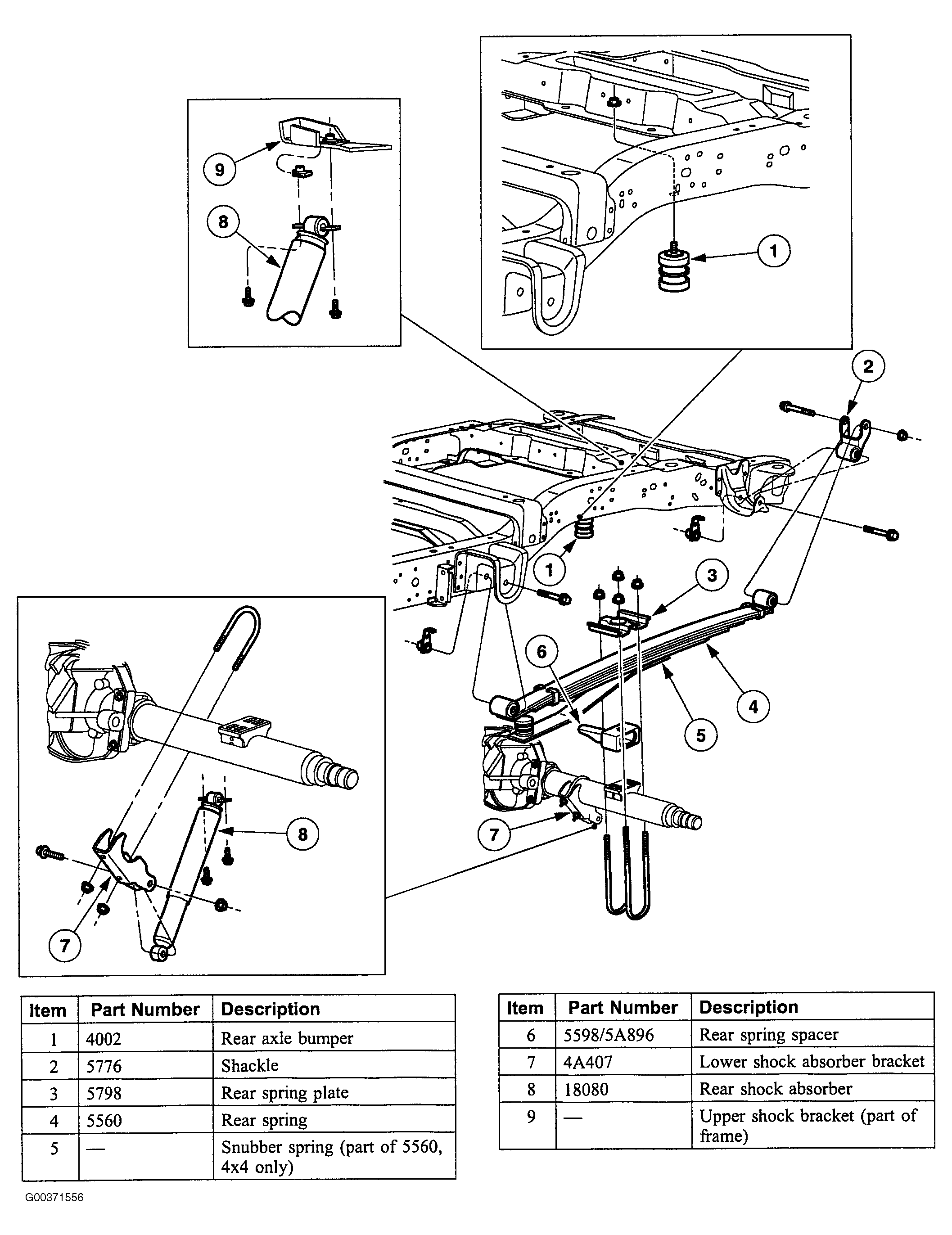

Fig 9: Excursion

G00371556

Courtesy of FORD MOTOR CO.
