Wheel Bearing - 2WD: Installation

WARNING: This page is about a different car, the 2004 Ford Escape, 2003 Ford Escape, and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tools, install the wheel bearing into the wheel knuckle.

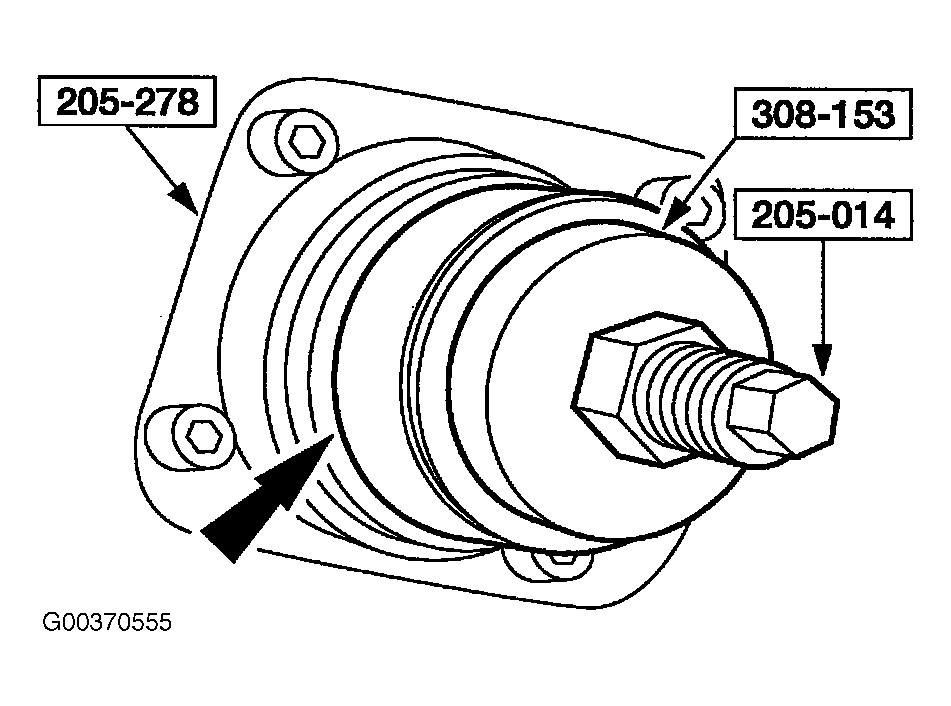

Fig 1: Installing Wheel Bearing (2WD)
Courtesy of FORD MOTOR CO.
Install the snap ring.
Using the special tools, install the wheel hub into the wheel bearing.

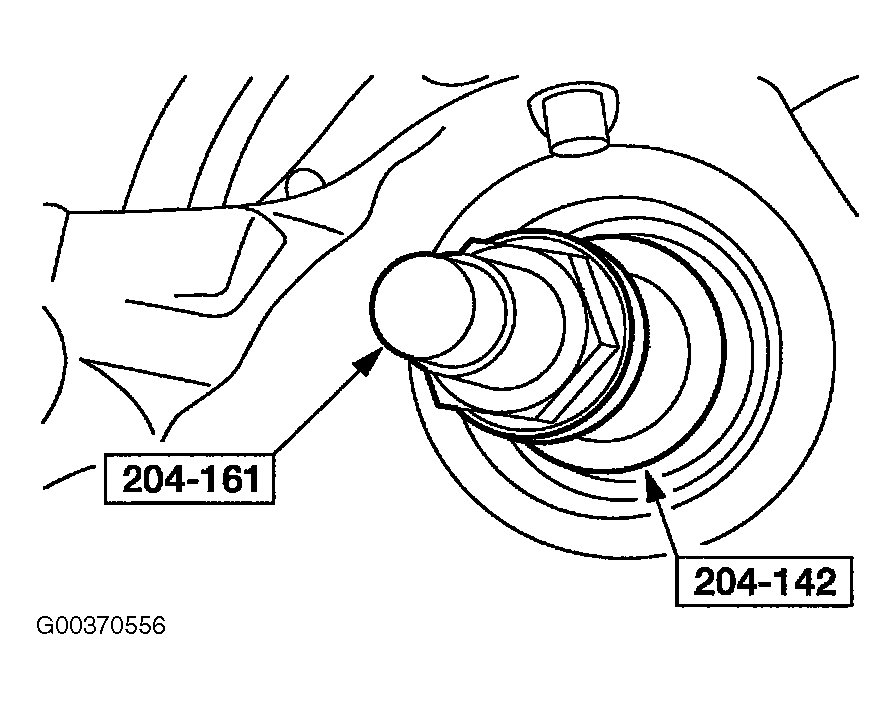

Fig 2: Installing Wheel Hub (2WD)
Courtesy of FORD MOTOR CO.

NOTE: If equipped, install the ABS sensor ring.

Install the wheel hub nut.
Install the brake drum, see DISC & DRUM .
