Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Escape, 2003 Ford Escape, and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire.

NOTE: It may be necessary to hold the ball joint stud to keep it from turning while removing the nut.

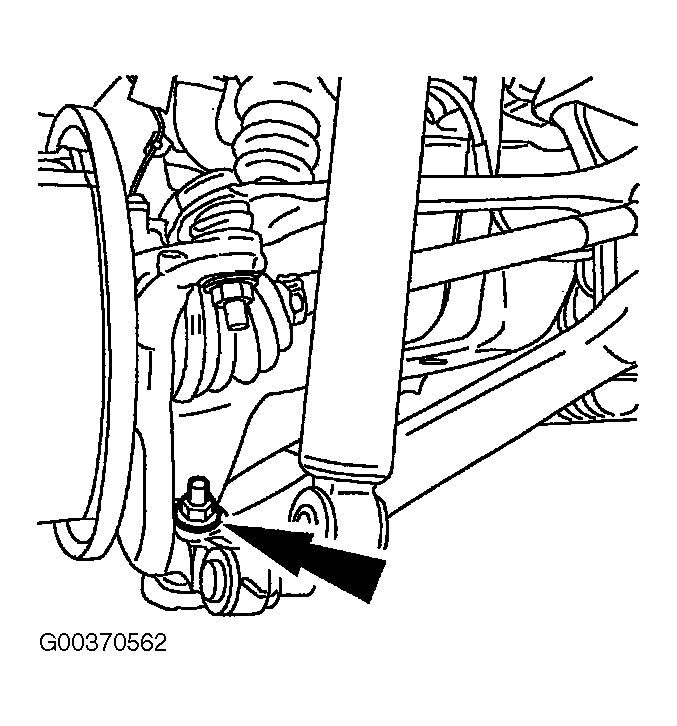

Fig 1: Identifying Lower Ball Joint Nut

Courtesy of FORD MOTOR CO.

Separate the lower ball joint from the wheel knuckle. Remove the lower ball joint nut.
Remove the lower arm inner bolt. Remove the lower arm.

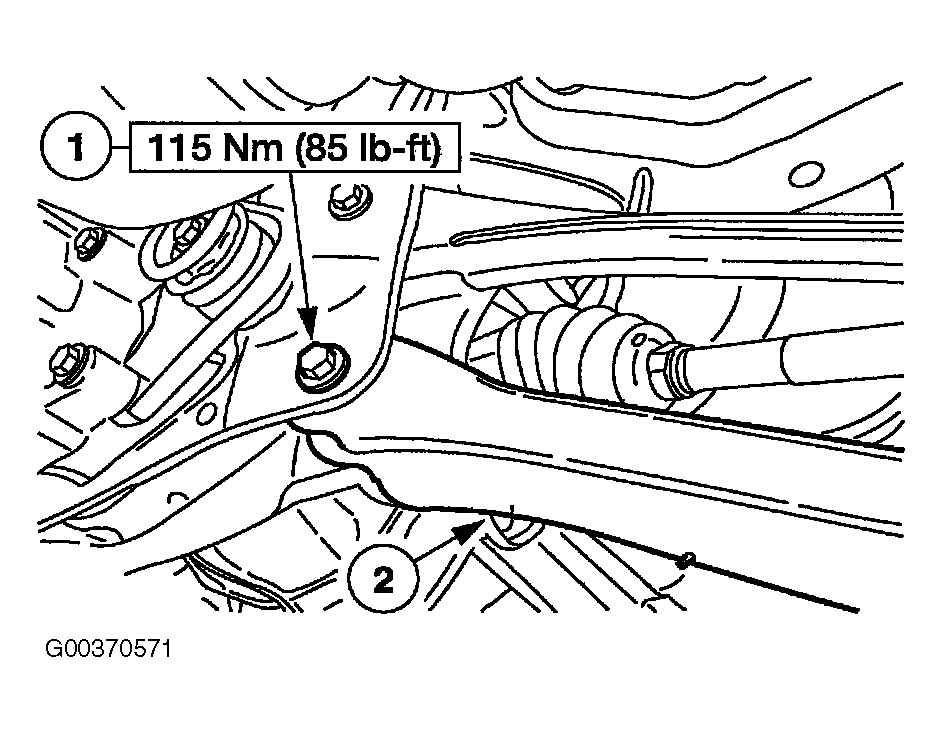

Fig 2: Removing Lower Arm
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
