Instrument Cluster Finish Panel
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

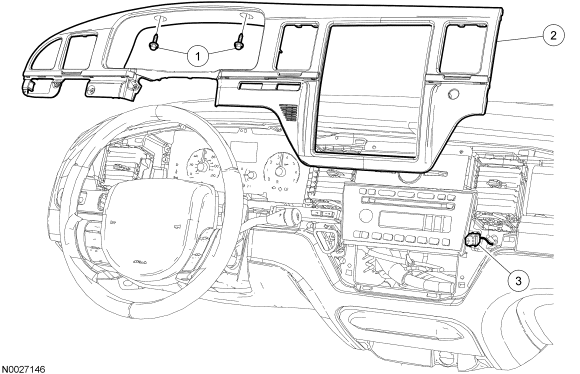

| Item | Part Number | Description |
|---|---|---|
| 1 | N807122 | Instrument cluster finish panel screws (2 required) |
| 2 | 54044D70 | Instrument cluster finish panel |
| 3 | - | Passenger air bag deactivation (PAD) electrical connector (part of 14401) |
- Position the selector lever in the 1st gear position.
- Position the ignition switch in the OFF position.
- Position the steering column to the full down position.
- Remove the instrument cluster finish panel screws.
- Release the retainers and position the instrument cluster finish panel aside.
- Remove the instrument cluster finish panel and disconnect the electrical connector.
- To install, reverse the removal procedure.
NOTE:
Ignition switch must be in OFF position if disconnecting the passenger airbag deactivation (PAD) indicator electrical connector. Otherwise, a DTC will be set in the restraints control module (RCM) memory and must be erased before releasing the vehicle.
