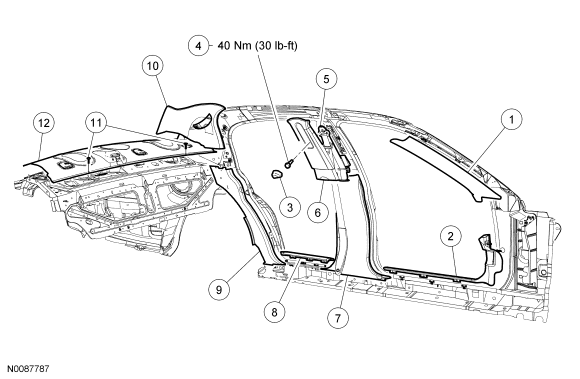

Interior Trim - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5403598 RH/ 5403599 LH | A-pillar trim panel |
| 2 | 5402344 RH/ 5402345 LH | Lower A- pillar trim panel |
| 3 | 60262 | Safety belt D-ring cover |
| 4 | - | Safety belt D-ring bolt (part of 54611B08 RH/54611B09 LH) |
| 5 | 54611B08 RH/ 54611B09 LH | Safety belt |
| 6 | 5424356 RH/ 5424357 LH | Upper B-pillar trim panel |
| 7 | 5424346 RH/ 5424347 LH | Lower B-pillar trim panel |
| 8 | 5413228 RH/ 5413229 LH | Rear door scuff plate |
| 9 | 5431012 RH/ 5431013 LH | Rear quarter trim panel |
| 10 | 54520018 RH/ 54522019 LH | Rear trim panel |
| 11 | - | Pin-type retainers |
| 12 | 5446668 | Parcel shelf |
- For additional information, refer to the appropriate procedures.
