Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Headliner Adhesive (commercially available) |
WSS-M2G355-B |

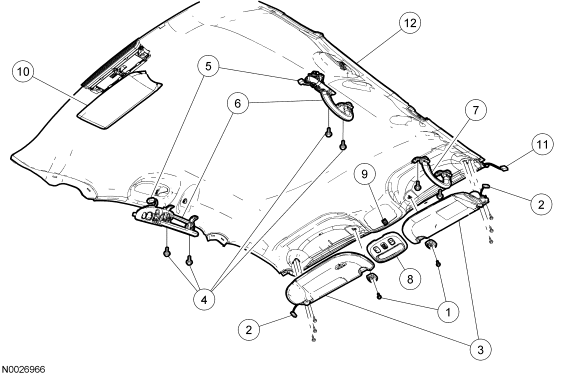

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Sun visor screws (8 required) |
| 2 | - | Sun visor electrical connectors (2 required) (part of 14334) |
| 3 | 04104/04105 | Sun visors (2 required) |
| 4 | - | Assist handle screws (6 required) |
| 5 | - | Rear assist handle electrical connectors (2 required) (part of 14334) |
| 6 | 31406B | Rear assist handles (2 required) |
| 7 | 31406A | Front assist handle |
| 8 | 13D763 | Dome light |
| 8 | 13776 | Dome light (without roof opening panel) |
| 9 | - | Overhead console electrical connector (part of 14334) |
| 10 | 13A613 | High mount stoplight cover |
| 11 | - | Headliner electrical connector (part of 14334) |
| 12 | 5451916 | Headliner assembly |
