Trouble Shooting
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2003 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

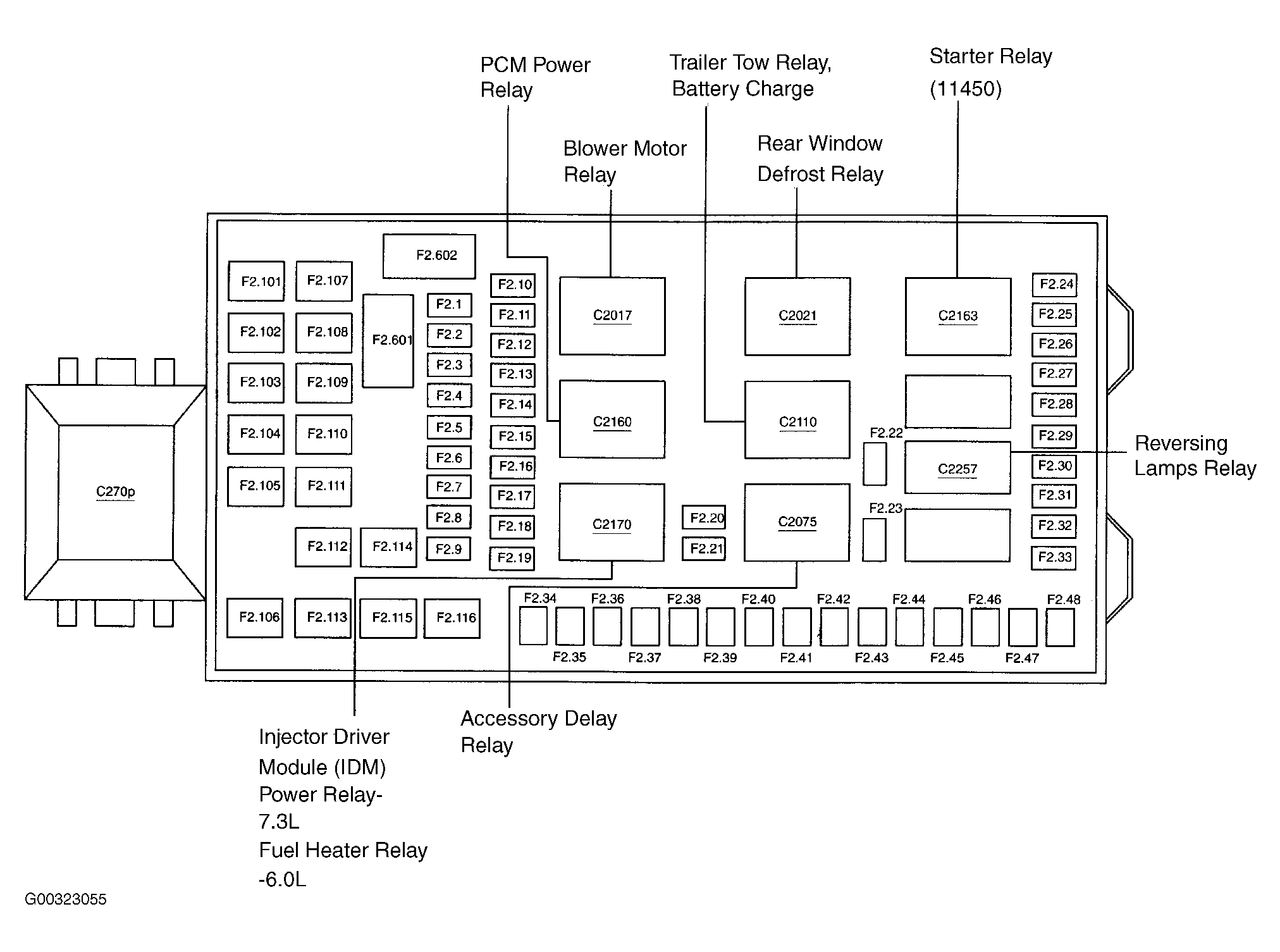

Verify customer compliant by operating starting system. Check battery for state of charge. Check cable connections at battery and starter motor. Ensure transmission is fully engaged in Park or Neutral (A/T). Ensure clutch pedal is pressed down completely (M/T). On all models, check fuse No. 31 (15-amp) and fuse No. 113 (30-amp) in central junction box. See Fig 1. On M/T vehicles, check fuse No. 45 (10-amp). On all vehicles, if problem is found, repair as necessary. If problem is not found, repair by symptom. See SYMPTOM INDEX table under SYSTEM TESTS.
