Brake Shift Interlock Actuator: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

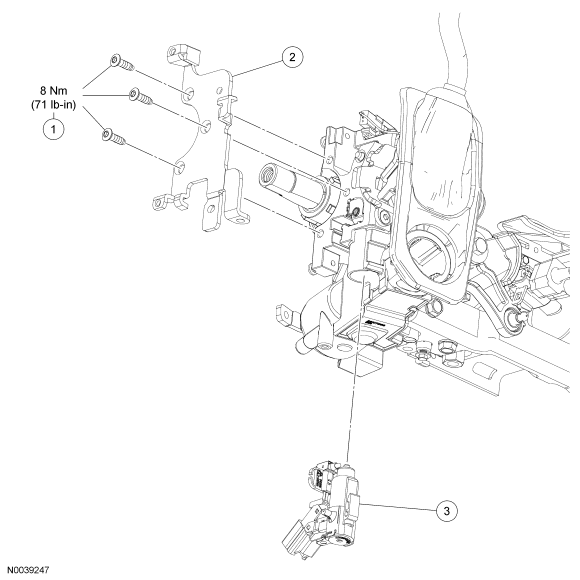

Fig 1: Exploded View Of Column Shift Brake Shift Interlock Actuator With Torque Specifications
GF0014152Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3F907 Clockspring mounting bracket bolts
2 3678 Clockspring mounting bracket
3 3F770 Brake Shift Interlock Actuator (BSIA)
