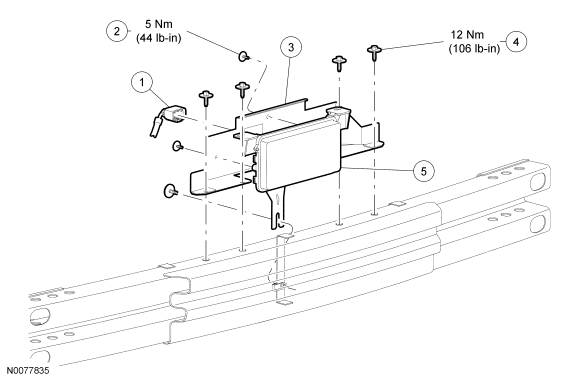

Parking Aid - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking aid module (PAM) wiring harness connector (part of 14N139) |
| 2 | - | PAM bolts (3 required) (part of 15K859) |
| 3 | - | PAM bracket (part of 15K859) |
| 4 | - | PAM bracket bolts (5 required) (part of 15K859) |
| 5 | 15K859 | PAM |
- For additional information, refer to the appropriate procedures.
