Air Suspension Compressor Drier: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

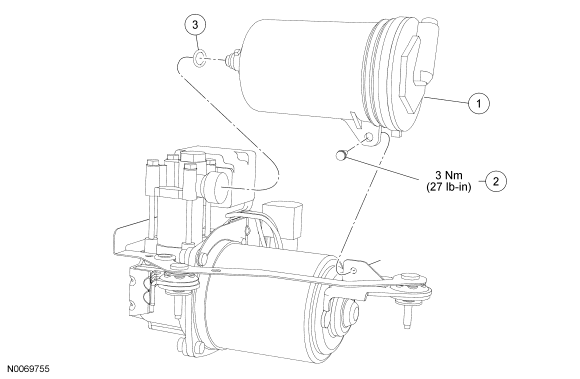

Fig 1: Exploded View Of Air Suspension Compressor Drier With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5345	Air suspension compressor drier
2	-	Air suspension compressor drier screw (part of 5345)
3	-	O-ring (part of 5345)
