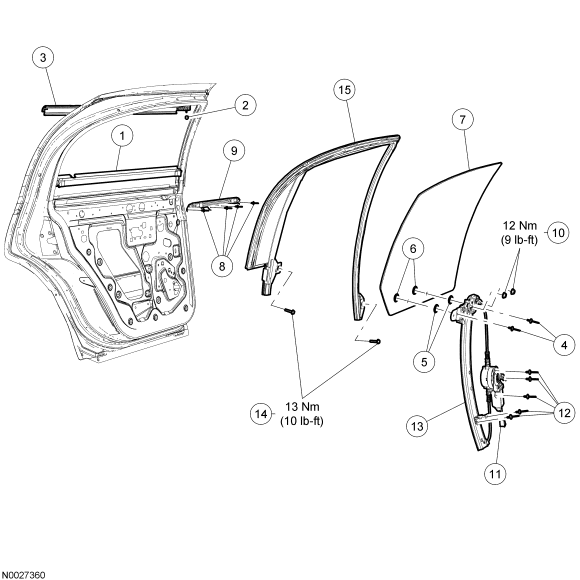

Glass, Frames & Mechanisms - Exploded View, Rear Door
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5425860 RH/5425861 LH | Interior weatherstrip |
| 1 | 54246A34 RH/54246A35 LH | Interior weatherstrip (long wheelbase) |
| 2 | N805296 | Exterior weatherstrip nut |
| 3 | 5425596 RH/5425597 LH | Exterior weatherstrip |
| 4 | W525175 | Rear door window glass rivets (2 required) |
| 5 | 54234A44 | Inner spacers (2 required each side) (RH/LH) |
| 6 | 54234A46 | Outer retainers (2 required each side) (RH/LH) |
| 7 | 5425712 RH/5425713 LH | Rear door window glass |
| 8 | W525172 | Pull handle retainer bracket rivets (4 required each side) |
| 9 | 5423834 | Pull handle retainer bracket |
| 10 | N621906 | Rear door window regulator nuts (2 required) |
| 11 | - | Rear door window regulator motor electrical connector (part of 5427000 RH/5427001 LH) |
| 12 | W525172 | Rear door window regulator rivets (5 required) |
| 13 | 5427000 RH/5427001 LH | Rear door window regulator/motor |
| 14 | N811610 | Rear door glass top run bolts (2 required) |
| 15 | 5425766/5425767 | Rear door quarter glass and top run |
- For additional information, refer to the appropriate procedures.
