Luggage Compartment Lid: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

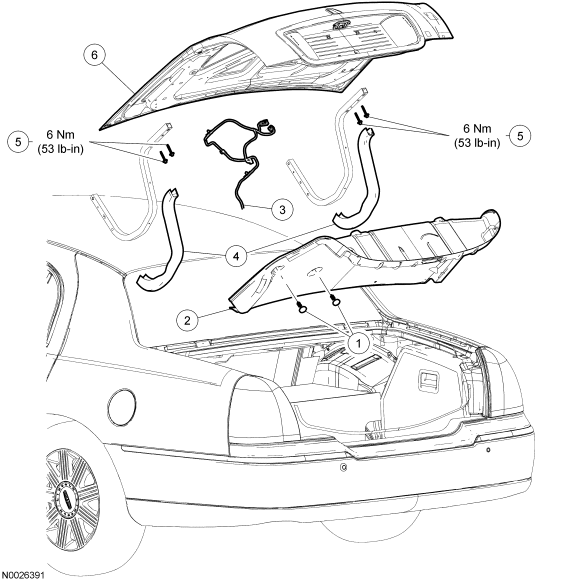

Fig 1: Luggage Compartment Lid Replacement Components With Torque Specifications
GF0018376Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W708888 Pin-type retainers (12 required)
2 5445594 Luggage compartment lid trim panel
3 - Luggage compartment lid electrical connector (part of 14A005)
4 54454B00 RH/ 54454B01 LH Luggage compartment lid hinge cover (2 required)
5 W708191 Luggage compartment lid hinge bolts (4 required)
6 5440110 Luggage compartment lid
