Luggage Compartment Lid Motor: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

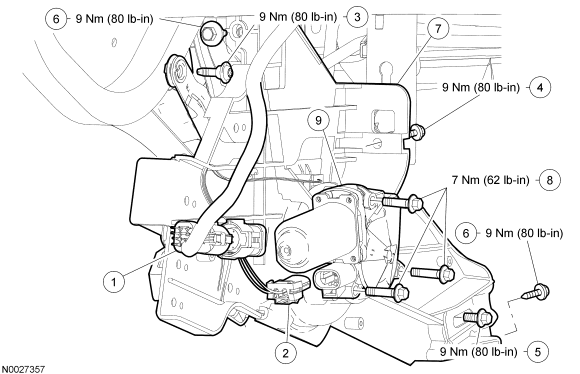

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Luggage compartment lid motor assembly wiring harness connector |
| 2 | - | Luggage compartment lid motor electrical connector (part of 54432A38) |
| 3 | - | Luggage compartment lid motor assembly bolt (part of 54432A38) |
| 4 | W709019 | Luggage compartment lid motor assembly arm bolt |
| 5 | W708268 | Luggage compartment lid motor assembly bolt |
| 6 | - | Luggage compartment lid assembly bracket bolts |
| 7 | 54432A38 | Luggage compartment lid motor bracket assembly |
| 8 | - | Luggage compartment lid drive motor bolts (3 required) |
| 9 | 14B259 | Luggage compartment lid drive motor |
