Power Steering Pump to Steering Gear Pressure Line: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

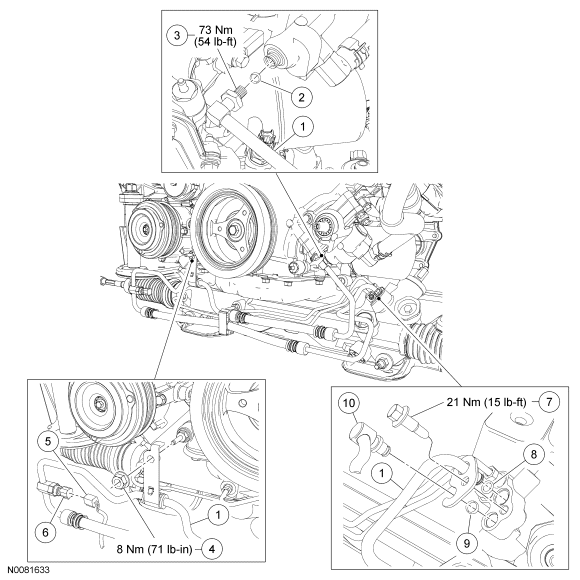

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A719 | Pressure line |
| 2 | 388898 | Teflon® O-ring seal |
| 3 | - | Pressure line-to-pump fitting (part of 3A719) |
| 4 | N621906 | Pressure line bracket-to-engine nut |
| 5 | - | Power steering pressure switch electrical connector (part of 14A464) |
| 6 | 3N824 | Power steering pressure switch |
| 7 | W704331 | Steering line clamp plate bolt |
| 8 | N803257 | O-ring seal |
| 9 | N803256 | O-ring seal |
| 10 | 3A713 | Return line |
