Heater Hose: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

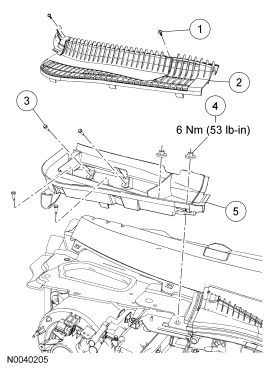

Fig 1: Heater Hose Replacement Components (With Torque Specifications ) (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	RH cowl grille screw (2 required)
2	018A16	RH cowl grille
3	W704759	RH cowl extension screw (5 required)
4	N620480	Upper vapor management valve (VMV) bracket nut (2 required)
5	19C928	RH cowl extension

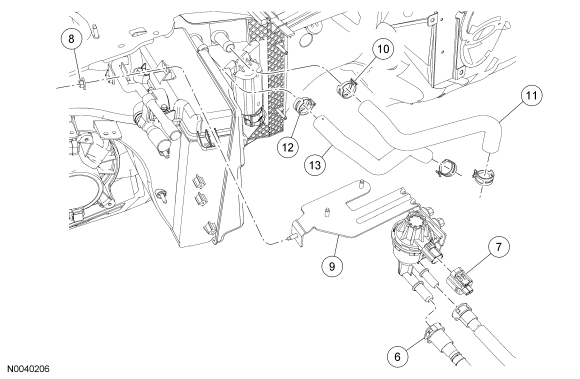

Fig 2: Identifying Heater Hose Components (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
6	-	VMV fitting (2 required) (part of 9C915)
7	12B637	VMV electrical connector
8	N621927	Lower VMV bracket nut
9	9C915	VMV and bracket
10	8287	Heater inlet hose clamp (2 required)
11	18472	Heater inlet hose
12	8287	Heater outlet hose clamp (2 required)
13	18472	Heater outlet hose
