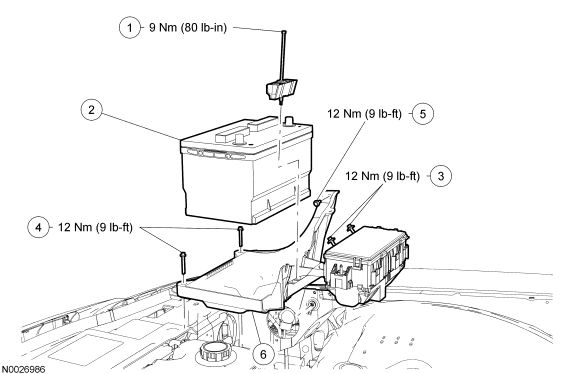

Battery & Battery Tray - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 10756 | Battery hold-down clamp and bolt |
| 2 | 10655 | Battery |
| 3 | W708191 | Battery junction box (BJB) bolts (2 required) |
| 4 | N808480 | Battery tray bolts (2 required) |
| 5 | N808623 | Battery tray bolt |
| 6 | 10732 | Battery tray |
- For additional information, refer to the appropriate procedures.
