Fuel Pump Driver Module (FPDM): Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

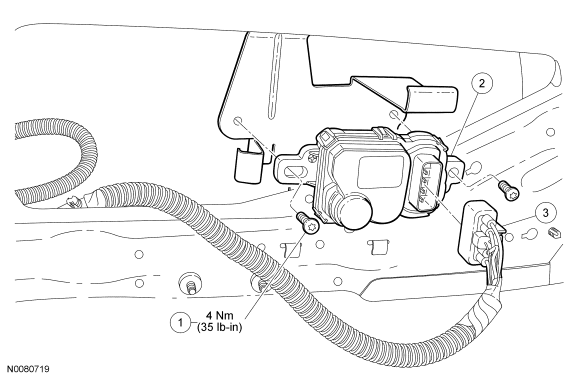

Fig 1: Exploded View Of Fuel Pump Driver Module (FPDM) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W504755	Fuel pump driver module (FPDM) bolt (2 required)
2	9D372	FPDM
3	14A464	FPDM electrical connector
