Cooling Fan Motor & Shroud: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

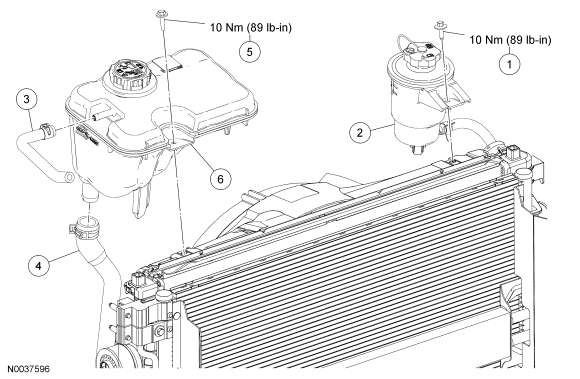

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N606676 |
Power steering reservoir bolt |
| 2 |
3531 |
Power steering reservoir |
| 3 |
8W005 |
Degas bottle overflow hose |
| 4 |
8B273 |
Degas bottle supply hose |
| 5 |
W505424 |
Degas bottle bolt |
| 6 |
8A080 |
Degas bottle |

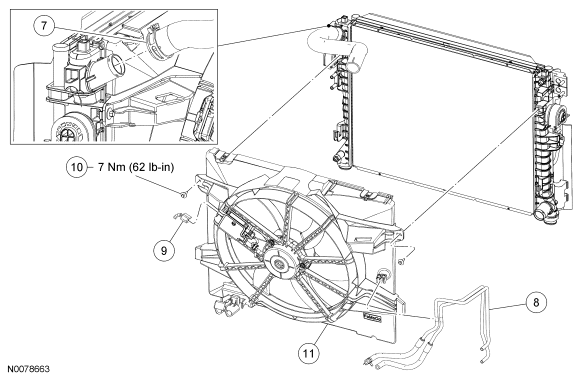

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 7 |
8B274 |
Upper radiator hose |
| 8 |
7T028 |
Transmission cooler tubes |
| 9 |
14A464 |
Cooling fan electrical connector |
| 10 |
N0043057 |
Cooling fan motor and shroud bolt (2 required) |
| 11 |
8C607 |
Cooling fan motor and shroud |
