Cowl Panel Grille: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

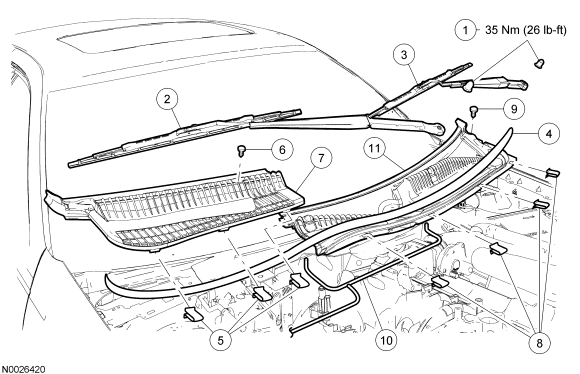

| Item | Part Number | Description |
|---|---|---|
| 1 | W710827 | Wiper pivot arm nuts (2 required) |
| 2 | 17526 | RH wiper pivot arm |
| 3 | 17527 | LH wiper pivot arm |
| 4 | 16740 | Weather seal |
| 5 | N805886 | RH cowl panel grille retainer clips (3 required) |
| 6 | N811849 | Pin-type retainer |
| 7 | 54018A16 | RH cowl panel grille |
| 8 | N805886 | LH cowl panel grille retainer clips (4 required) |
| 9 | N811849 | Pin-type retainer |
| 10 | 17A605 | Washer hose |
| 11 | 54018A17 | LH cowl panel grille |
