Wheel Knuckle: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

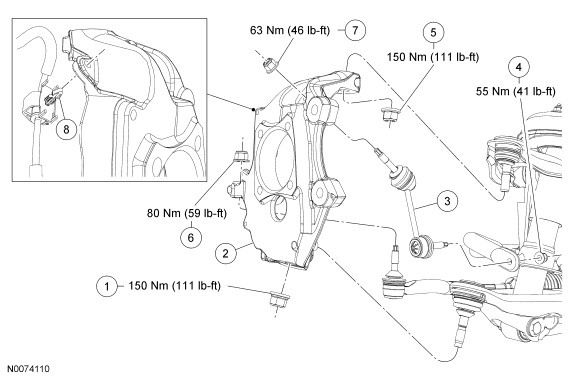

| Item |
Part Number |
Description |
| 1 |
W710298 |
Lower ball joint nut |
| 2 |
3K170 RH/ 3K171 LH |
Wheel knuckle |
| 3 |
3B438 |
Stabilizer bar link |
| 4 |
W520213 |
Stabilizer bar link lower nut |
| 5 |
W710298 |
Upper ball joint nut |
| 6 |
W520214 |
Outer tie-rod end nut |
| 7 |
W520213 |
Stabilizer bar link upper nut |
| 8 |
- |
Wheel speed sensor wiring harness retainer (part of 2C204) |
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |

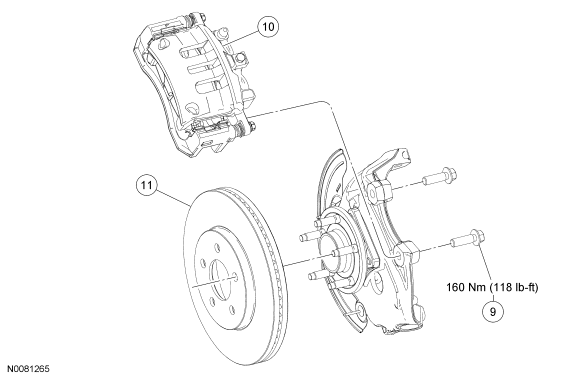

| 9 |
W707589 |
Brake caliper anchor plate bolts (2 required) |
| 10 |
- |
Brake caliper and anchor plate assembly |
| 11 |
1125 |
Brake disc |
