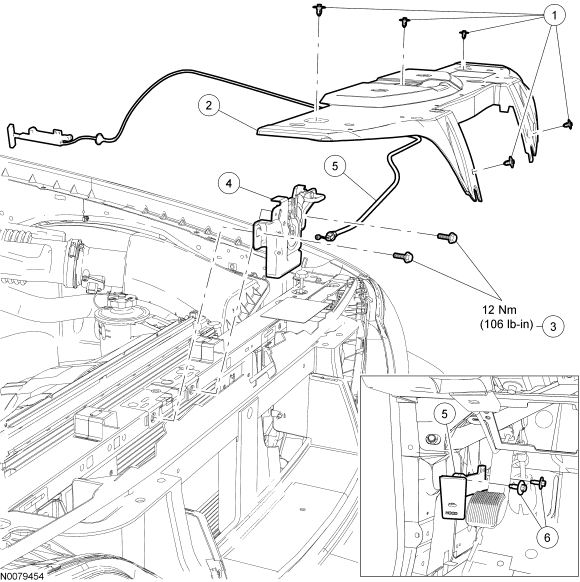

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706519 | Radiator sight shield retainers (5 required) |
| 2 | 8C291 | Radiator sight shield |
| 3 | - | Hood latch bolts (2 required) |
| 4 | 16700 | Hood latch |
| 5 | 16916 | Hood latch release handle and cable |
| 6 | N611102 | Hood latch release handle and cable screws (2 required) |
- For additional information, refer to the appropriate procedures.
