Differential Case: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	2-Jaw Puller	205-D072 (D97L-4221-A) or equivalent
Courtesy of FORD MOTOR CO.	Dial Indicator With Holding Fixture	100-002 (TOOL-4201-C) or equivalent
Courtesy of FORD MOTOR CO.	Gauge, Clutch Housing	308-021 (T57L-4201-A)
Courtesy of FORD MOTOR CO.	Installer, Differential Shim	205-220 (T85L-4067-AH)
Courtesy of FORD MOTOR CO.	Installer, Differential Side Bearing	205-010 (T57L-4221-A2)
Courtesy of FORD MOTOR CO.	Step Plate	205-D016 (D80L-630-5) or equivalent

MATERIAL

Item	Specification
Stud and Bearing Mount TA-27	WSK-M2G349-A1

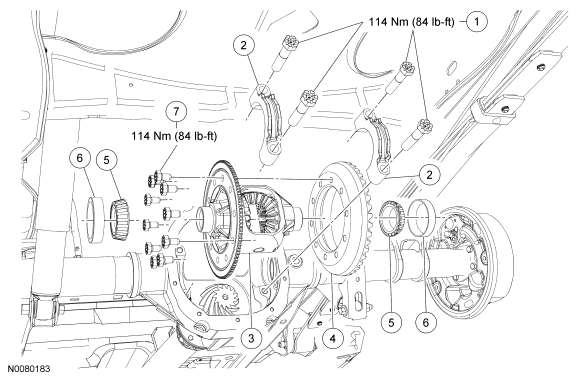

Fig 1: Exploded View Of Differential Case With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Bearing cap bolts (part of 4010) (4 required)
2	-	Bearing caps (part of 4010) (2 required)
3	4204	Differential case
4	4209	Differential ring gear
5	4221	Differential bearings (2 required)
6	4222	Differential bearing cups (2 required)
7	4216	Differential ring gear bolt (10 required)
