Differential Bearings: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Illustration | Tool Name | Tool Number |
|---|---|---|
| 2-Jaw Puller | 205-D072 (D97L-4221-A) or equivalent | |
| Adapter for 205-S127 | 205-105 (T76P-4020-A3) | |
| Adapter for 205-S127 | 205-109 (T76P-4020-A9) | |
| Adapter for 205-S127 | 205-110 (T76P-4020-A10) | |
| Adapter for 205-S127 | 205-111 (T76P-4020-A11) | |
| Adapter for 205-S127 | 205-129 (T79P-4020-A18) | |
| Adapter for 205-S127 | 205-130 (T79P-4020-A19) | |
| Dial Indicator With Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Gauge, Clutch Housing | 308-021 (T57L-4201-A) | |
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Installer, Differential Side Bearing | 205-010 (T57L-4221-A2) | |
| Installer, Drive Pinion Bearing Cone | 205-005 (T53T-4621-C) | |
| Installer, Drive Pinion Bearing Cup | 205-024 (T67P-4616-A) | |
| Installer, Drive Pinion Flange | 205-002 (TOOL-4858-E) or equivalent | |
| Installer, Drive Pinion Oil Seal | 205-208 (T83T-4676-A) | |
| Plate, Bearing Oil Seal | 205-090 (T75L-1165-B) | |
| Protector, Drive Pinion Thread | 205-460 or equivalent | |
| Puller, Bearing | 205-D064 (D84L-1123-A) or equivalent | |
| Remover, Differential Bearing | 205-116 (T77F-4220-B1) | |
| Shim Driver | 205-220 (T85L-4067-AH) | |
| Step Plate | 205-D061 (D83T-4205-C2) or equivalent |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) (Limo only) |
WSL-M2C192-A |
| Motorcraft SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada); (Model 60/70 axles) |
WSP-M2C197-A |

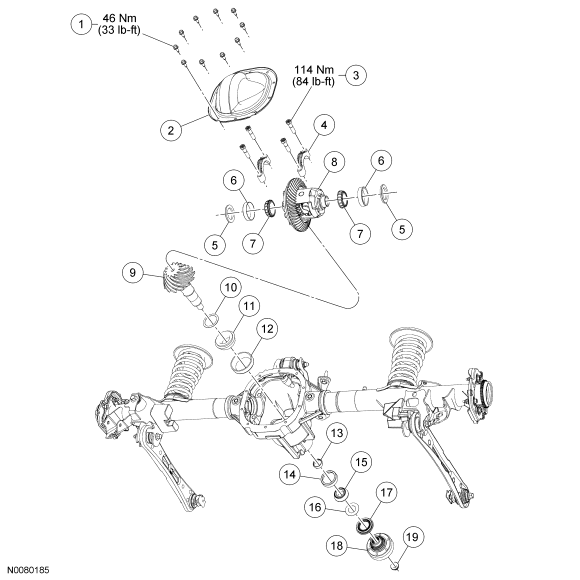

| Item | Part Number | Description |
|---|---|---|
| 1 | 4346 | Differential housing cover bolt (10 required) |
| 2 | 4033 | Differential housing cover |
| 3 | - | Differential bearing cap bolt (part of 4010) |
| 4 | - | Differential bearing cap (part of 4010) |
| 5 | 4067 | Differential bearing shims (2 required) |
| 6 | 4222 | Differential bearing cups (2 required) |
| 7 | 4221 | Differential bearings (2 required) |
| 8 | 4204 | Differential assembly |
| 9 | 4209 | Drive pinion |
| 10 | 4663 | Pinion bearing adjustment shim |
| 11 | 4630 | Inner pinion bearing |
| 12 | 4628 | Inner pinion bearing cup |
| 13 | 4662 | Collapsible spacer |
| 14 | 4616 | Outer pinion bearing cup |
| 15 | 4621 | Outer pinion bearing |
| 16 | 4670 | Pinion oil slinger |
| 17 | 4676 | Pinion oil seal |
| 18 | 4851 | Pinion flange |
| 19 | 389546-S | Pinion nut |
