Axle Shaft: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item |
Specification |
Premium Long-Life Grease
XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
Courtesy of FORD MOTOR CO.

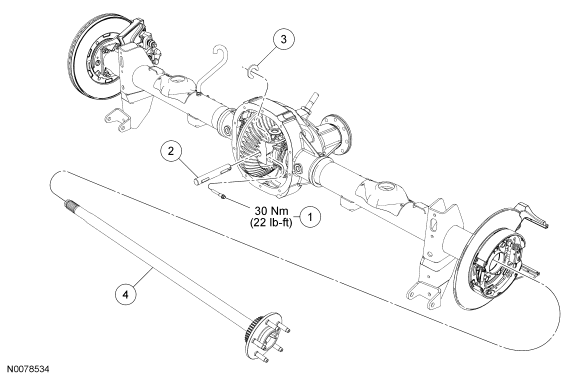

| Item |
Part Number |
Description |
| 1 |
4241 |
Differential pinion shaft lock bolt |
| 2 |
4211 |
Differential pinion shaft |
| 3 |
4N237 |
Axle shaft U-washer |
| 4 |
4234 |
Axle shaft |
