Windshield Washer Pump Motor Connector - C137

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

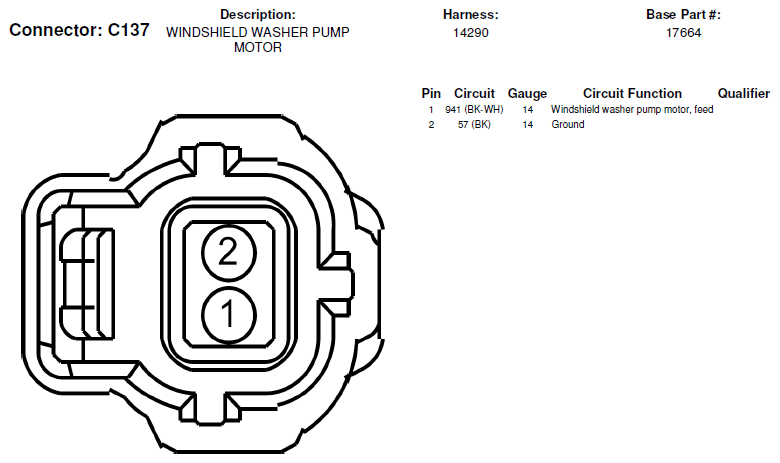

Fig 1: Windshield Washer Pump Motor Connector End View (C137)
G06414103Courtesy of FORD MOTOR CO.
