Right Power Seat Motor Assembly Connector - C3015

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

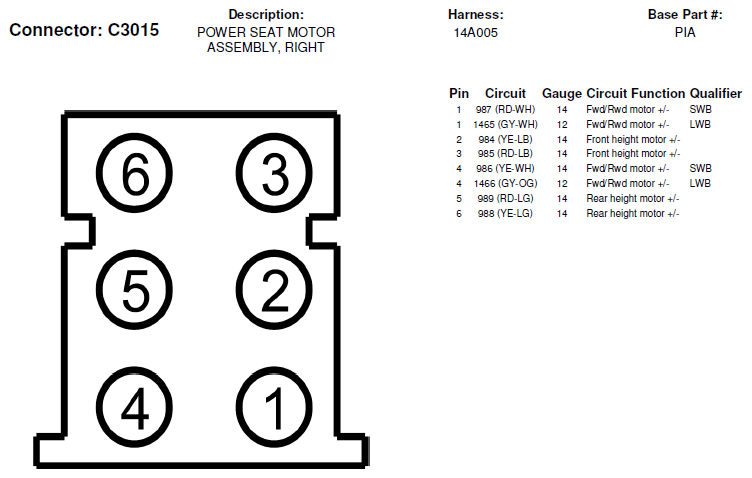

Fig 1: Right Power Seat Motor Assembly Connector End View (C3015)
G06414363Courtesy of FORD MOTOR CO.
