Right Front Park Lamp / Turn Lamp Connector - C1116

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

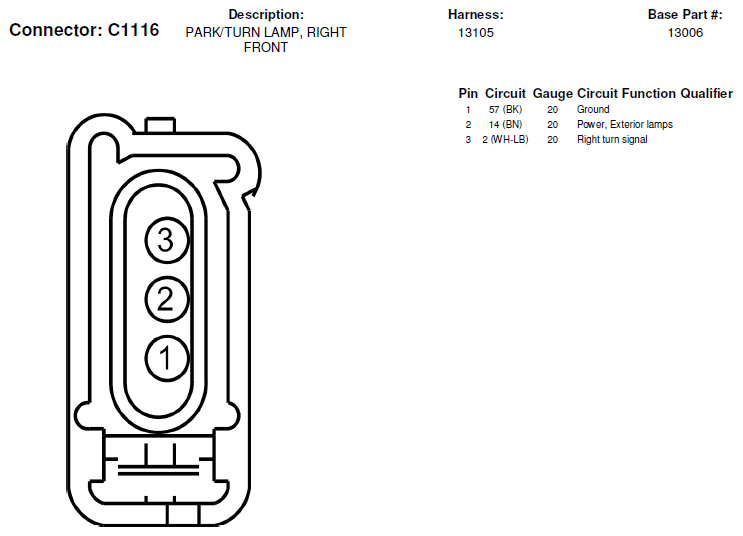

Fig 1: Right Front Park Lamp / Turn Lamp Connector End View (C1116)
G06414322Courtesy of FORD MOTOR CO.
