Right Front Door Entry Lamp Connector - C606

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

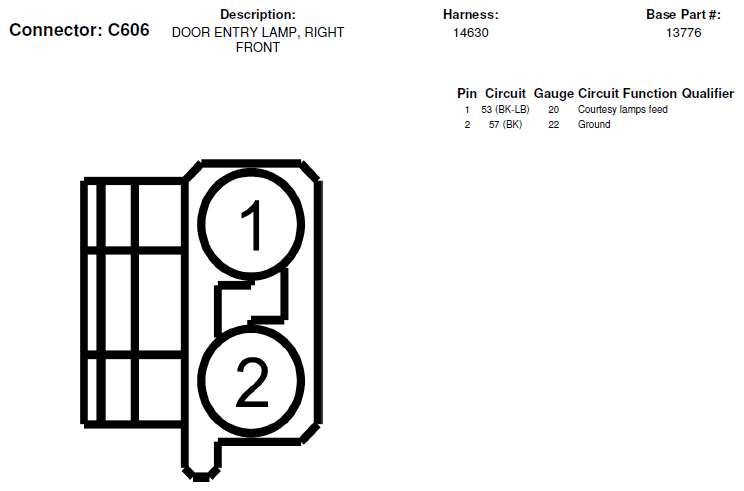

Fig 1: Right Front Door Entry Lamp Connector End View (C606)
G06414263Courtesy of FORD MOTOR CO.
