Passenger Side Front Door Lock Unit Connector - C609

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

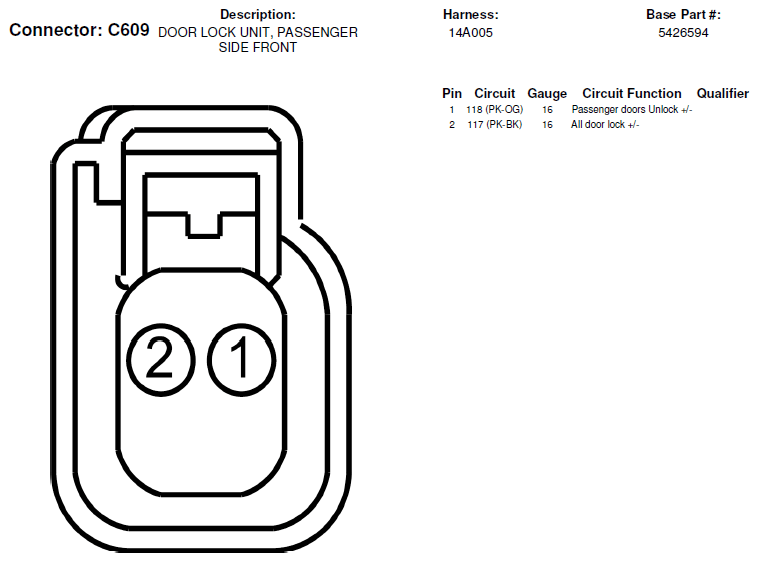

Fig 1: Passenger Side Front Door Lock Unit Connector End View (C609)
G06414265Courtesy of FORD MOTOR CO.
