Passenger Safety Belt Retractor Pretensioner Connector - C303

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

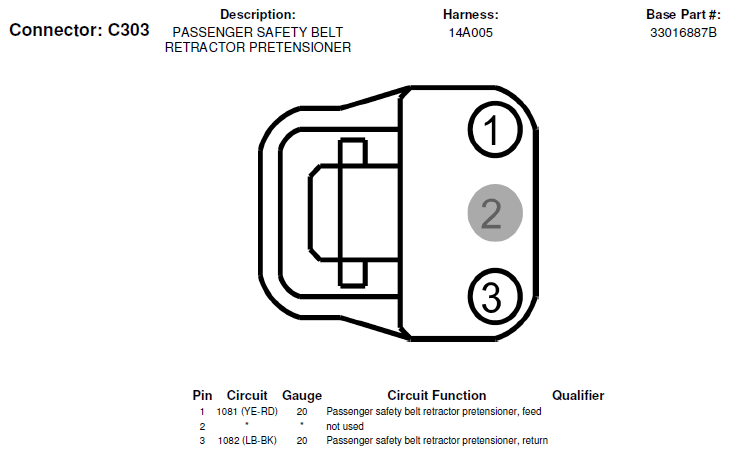

Fig 1: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
G06414176Courtesy of FORD MOTOR CO.
