Left Rear Power Point Connector - C3164

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

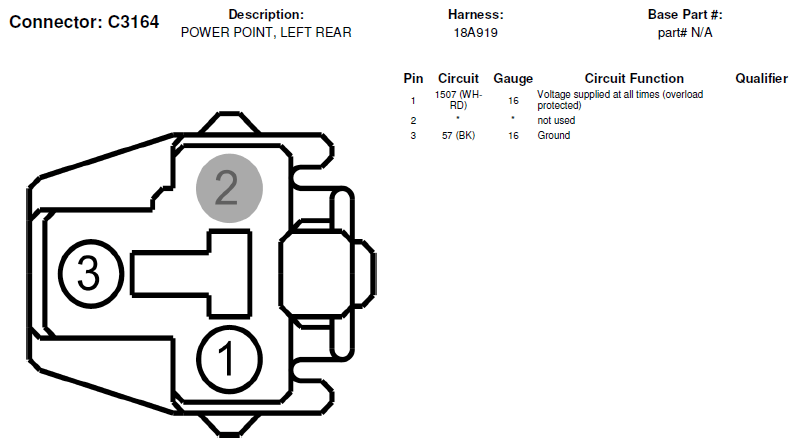

Fig 1: Left Rear Power Point Connector End View (C3164)
G06414378Courtesy of FORD MOTOR CO.
