Inertia Fuel Shutoff Switch Connector - C4168

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

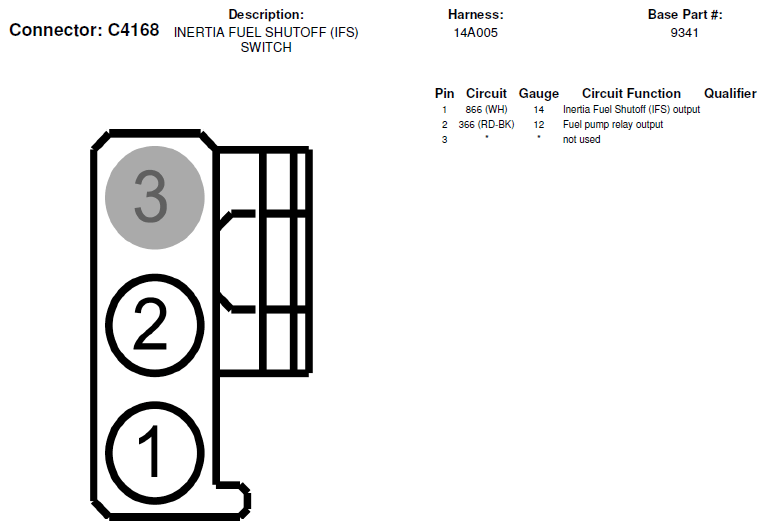

Fig 1: Inertia Fuel Shutoff Switch Connector End View (C4168)
G06414401Courtesy of FORD MOTOR CO.
