Fuel Filler Door Release Switch Connector - C512

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

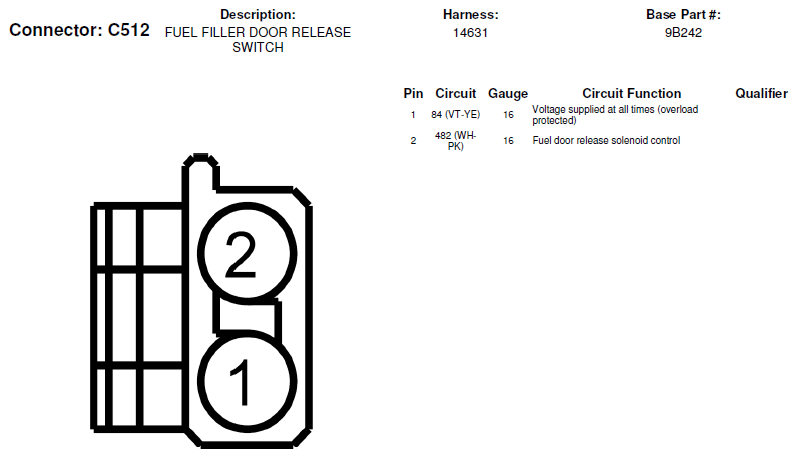

Fig 1: Fuel Filler Door Release Switch Connector End View (C512)
G06414244Courtesy of FORD MOTOR CO.
