Driver Seat Recline Position Sensor Connector - C376

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

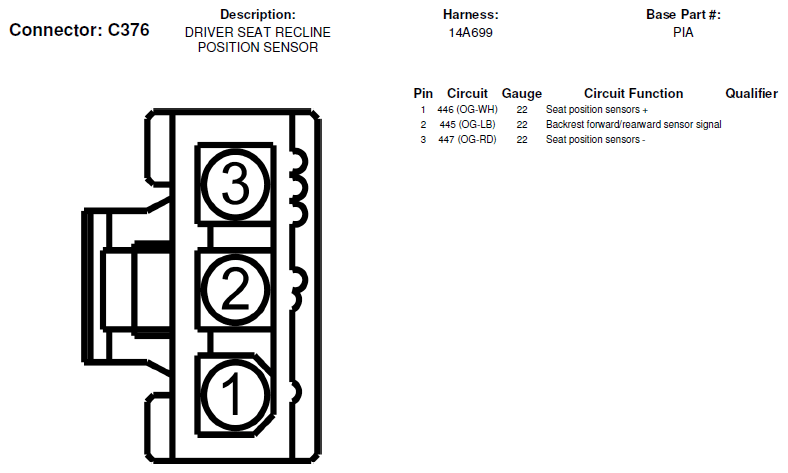

Fig 1: Driver Seat Recline Position Sensor Connector End View (C376)
G06414211Courtesy of FORD MOTOR CO.
