Driver Safety Belt Buckle Switch Connector - C3065

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

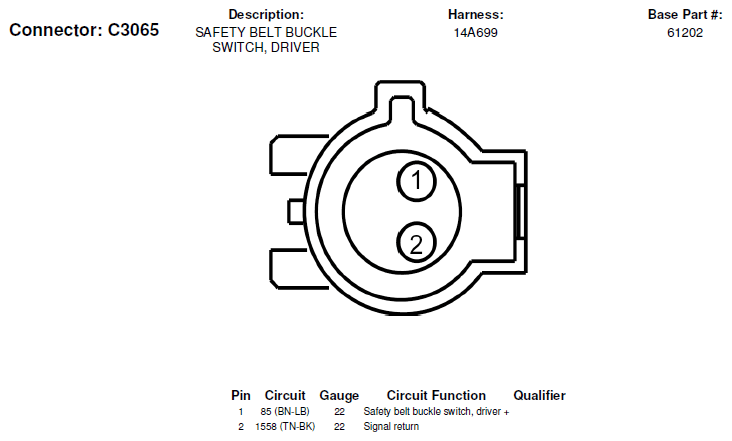

Fig 1: Driver Safety Belt Buckle Switch Connector End View (C3065)
G06414366Courtesy of FORD MOTOR CO.
