Air Suspension Compressor Assembly Connector - C1179

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

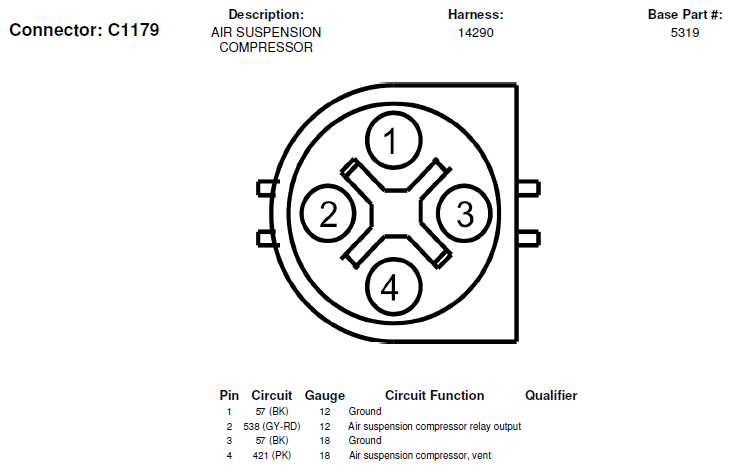

Fig 1: Air Suspension Compressor Assembly Connector End View (C1179)
G06414325Courtesy of FORD MOTOR CO.
