Adjustable Pedal Switch Connector - C2089

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

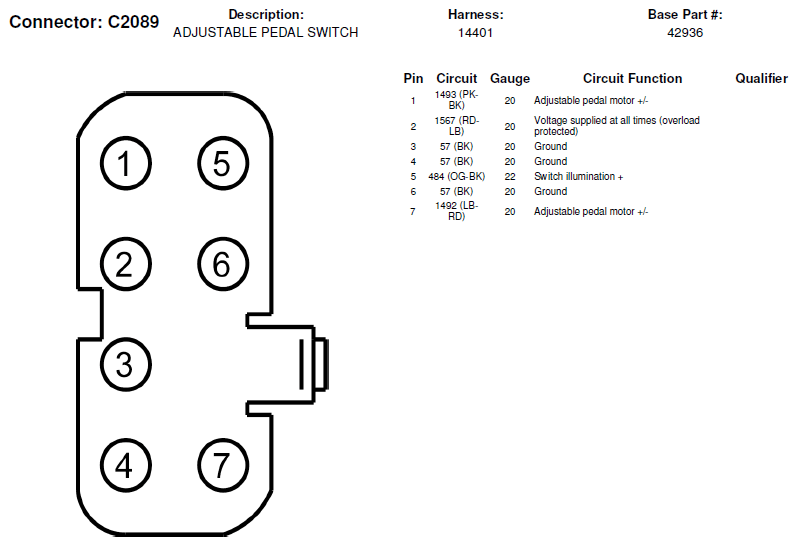

Fig 1: Adjustable Pedal Switch Connector End View (C2089)
G06414349Courtesy of FORD MOTOR CO.
