Adjustable Pedal Motor Connector - C2003

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

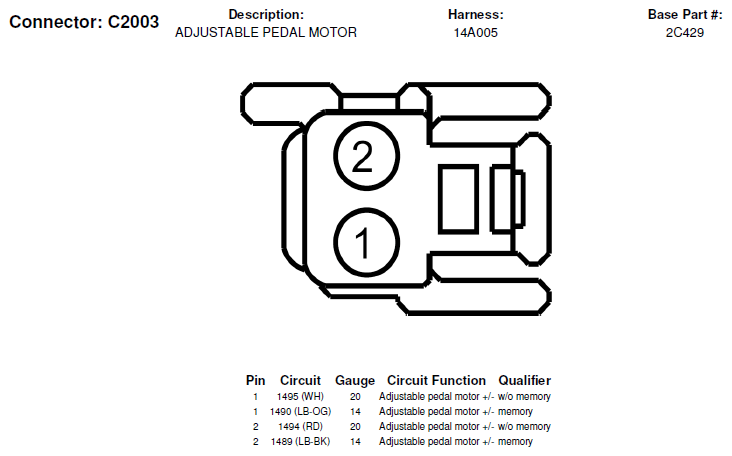

Fig 1: Adjustable Pedal Motor Connector End View (C2003)
G06414340Courtesy of FORD MOTOR CO.
