Stabilizer Bar Bushings: Installation
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

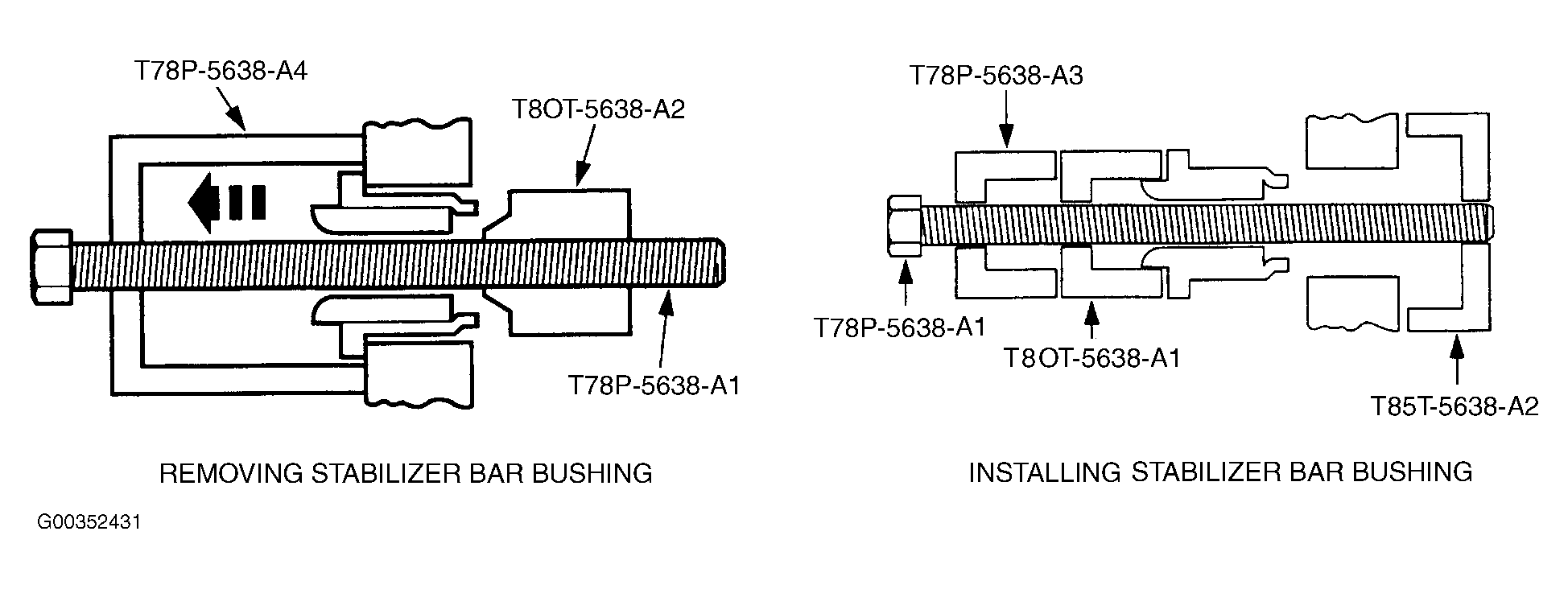

Using the Twin "I" Beam Pivot Bushing Installer (T85T-5638-A2) and Adapters (T80T-5638-A1, T78P-5638-A3 and T78P-5638-A1), install the stabilizer bar bushing. See Fig 1 . Install stabilizer bar. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS .
