Removal & Installation: Spindle: Removal
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Raise vehicle, and support under front axle. Remove wheel assembly. Remove brake caliper, and wire it to underbody to prevent damage to brake hose.
- Remove grease cap, cotter pin, retainer, adjusting nut, flat washer and outer wheel bearing. Remove brake rotor and brake dust shield. Remove the Anti-Lock Brake System (ABS) wheel speed sensor. Remove inner bearing and seal.
- Remove cotter pin and nut from tie rod end. Using Tie Rod Remover (TOOL-3290-D), remove tie rod end from spindle arm.

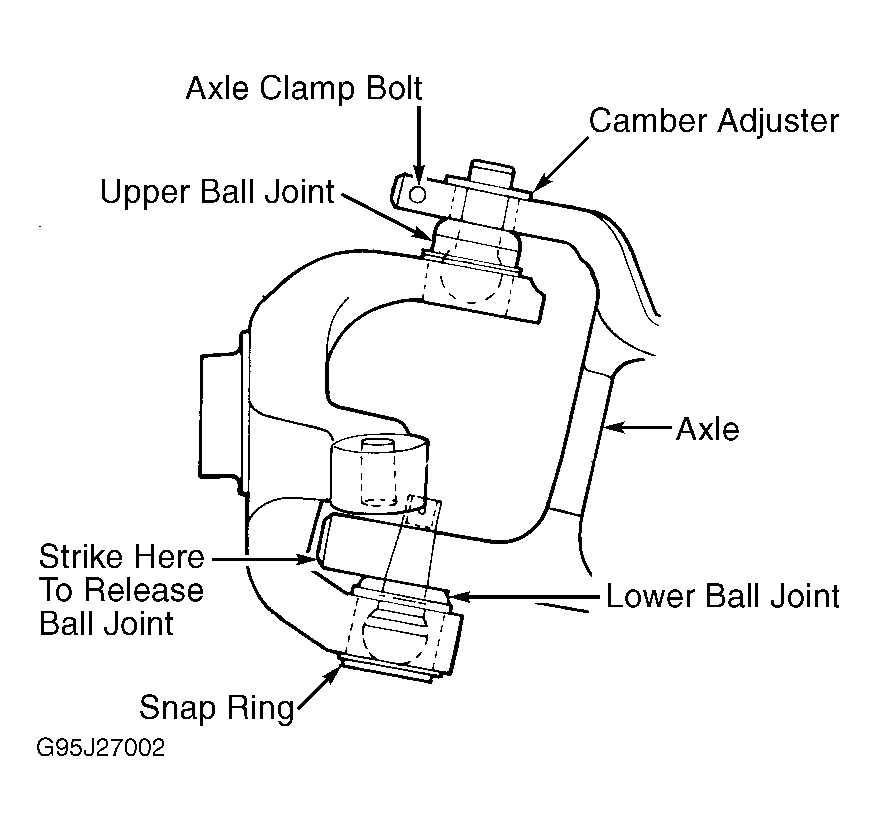

- Remove cotter pin and nut from lower ball joint. Remove nut from axle clamp bolt and remove bolt. Note position of camber adjuster on top of axle. See Fig 1
. Remove camber adjuster from upper ball joint.CAUTION: Do not use pickle fork to separate ball joint from spindle, as seal and ball joint socket will be damaged.
- Strike axle to break lower ball joint loose from axle. See Fig 1 . Remove spindle assembly.
